University Face Recognition Flap Barrier Turnstile Half Height Security System SUS Access Control Systems

PRODUCT DESCRIPTIONS:
The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, bar-code scanner, Token /ID/IC card reader, time & attendance system, coin collector, card collector, biometric systems (fingerprint & face recognition), consumption system, ESD system and fare collection system, etc.

PRODUCT CLASSIFICATIONS:

-> Single-core mechanism: RNCF H7088

The flap barrier only equipped with single-core in the cabinet, usually be used in single lane or multi-lane applications.

->Dual-core mechanism: RNCF H7088S

The flap barrier equipped with independent dual-core in the cabinet, usually be used in multi-lane applications.

SPECIFICATIONS:

STANDARD FEATURES & FUNCTIONS:

• (1). The turnstile system can easily integrates with the 3^rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc.

• (2). Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller.

• (3). Automatic check fault and alarm prompt function: to convenient for users to maintain and use.

• (4). The running status of device can be set up through pressing the built-in small keyboard of the main control board.

• (5). The device is locked until a valid open signal is received.

• (6). Infrared detection sensors: The device uses several infrared sensors transmitter and receiver type. The sensors are positioned at two different heights to defend against people trying to roll/crawl through the lane without being detected. The sensors are positioned at approximately knee height and waist height. The sensors can detect abnormal access and turnstile system will stay locked.

• (7). Anti-pinch function: Auto-alarm will activate for unauthorized pedestrian movement and tailgating. The barrier uses several photo sensors to prevent turnstile closure on a person while inside the lane.

• (8). Reset automatically function: “Go” signal will be cancelled if passage through is not completed within pre-set time. The standard default is 10 seconds (time adjustable 1s ~ 60s) by changing parameter of main control board). Also when power off, it will be opened the gates automatically. When the power is on again, the gates can also close automatically.

• (9). Emergency-escape function: When power off, it will be opened the gates automatically to meet the request of fire protection. Also the gates will open by pressing the emergency button which can be remote-controlled whether the power is on or not. (Optional).

• (10). LED indicator function: Traffic lights on both sides of the turnstile barrier are the indicator of access status, When the traffic lights show green, it means to pass and the red light means no-entry. The traffic lights on both sides can be set to indicate access for left or right or bi-direction.

• (11). Remote control and management function: Through the management computer to realize remote control and management.

• (12). Streamline design that utilizes shared cabinets for multi-lane applications.

• (13). The entire system runs smoothly, with a small noise and free of mechanical impact.

• (14). With normally open & normally closed working mode.

• (15). Approved CE certificate.

Project case

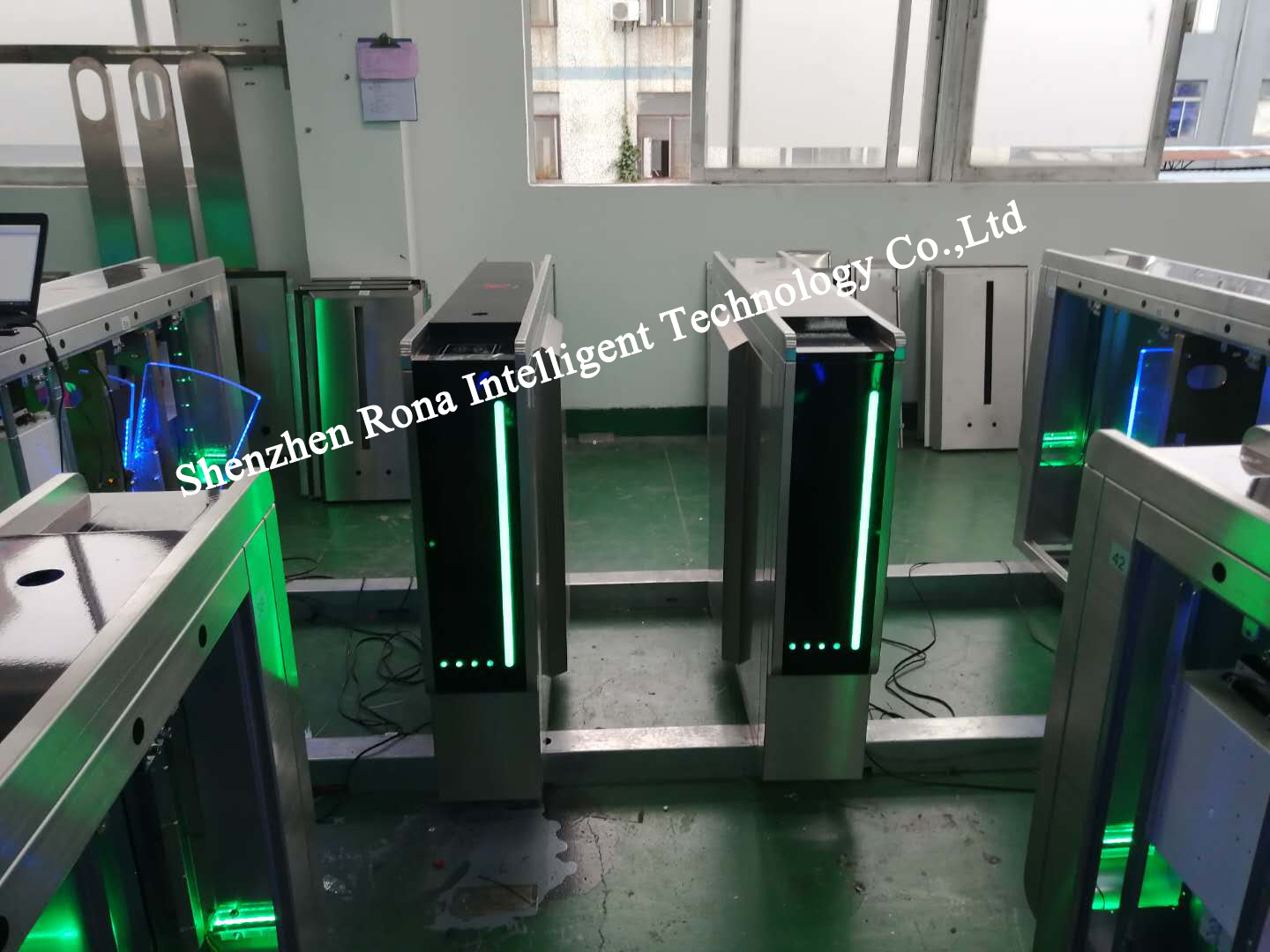

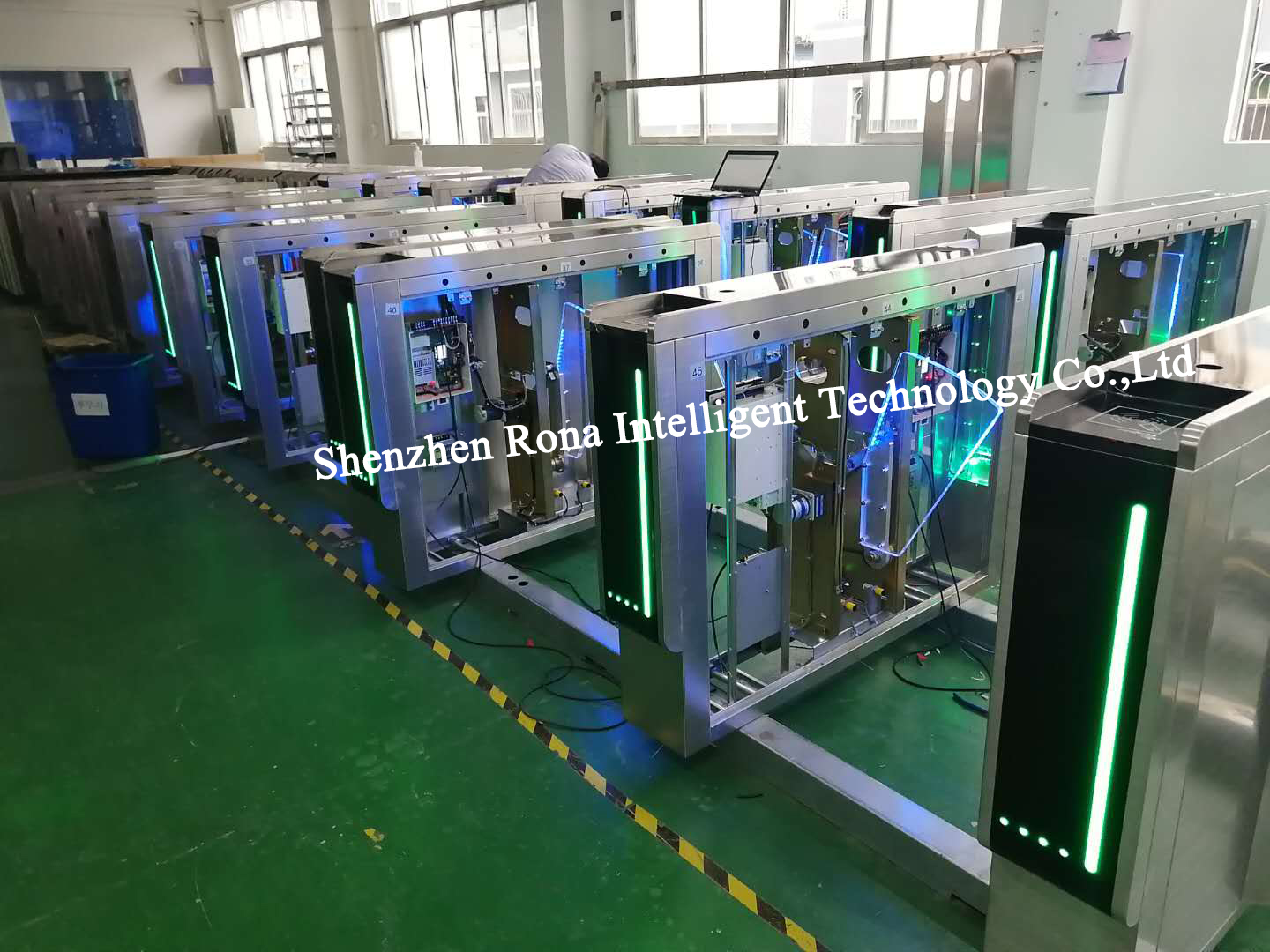

Workshop production Picture

Export Wooden Box for shipping

Established in 2004, Shenzhen RONA Intelligent Technology Co., Ltd (hereinafter referred as to RONA) is a leading Chinese manufacturer of security turnstiles and intelligentized access control system.

With more than 15 years professional production facilities and advanced engineering innovations, RONA designs, manufactures and successfully markets products that meet international standards of the security industry. Products by RONA work at many hundreds of locations in 60 countries worldwide.

we have manufactured a full-line of security turnstiles at our ISO 9001:2008 certified facility in Shenzhen China. Our customers are stadiums, health clubs, factories, schools, governments, embassies, office buildings, amusement parks, arenas and any other site that requires the control of pedestrian access.

Our Mission

RONA started and continues as a professional turnstile company with one goal – to deliver a broad range of innovation, high-quality products and services that meet our customers needs for security and effective business management.

Main Products Lines

RONA In Brief

-> 15 years expertise in the security turnstile market

-> Sales in 60 countries worldwide

-> Over 7000 sq. m of production & office space

-> An over 100-strong team of qualified professionals

-> A sales network of over 7 cities in China

-> Client Services, Technical Support, Marketing and Advertising, Research and Development Departments located in Shenzhen, China

-> A modern manufacturing plant in China

-> Finished-goods warehouses in Shenzhen

-> RONA quality management system is compliant with the CE &ISO 9001 international standard

RONA Industrial Park
