    SUS304 Acrylic Glass Swing Barrier Gate IP54 DC24V Turnstile Barrier Gate

    Ask Lasest Price
    Brand Name : RONA
    Model Number : RNCF7008HDZ
    Certification : CE / ISO9001
    Price : Negotiation
    Payment Terms : , L/C, T/T
    Supply Ability : 2000 units Per Month
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    SUS304 Acrylic Glass Swing Barrier Gate IP54 DC24V Turnstile Barrier Gate


    Latest New Safe Access Control System Glass Swing Barrier Gate High School Turnstiles Face Recogntion


    Product Decribetion

    1PowerAC220C±10V,50/60HZ;
    2Operating Temperature-20℃-60℃
    3Relative Humidity≤95%, No Condensation free
    4Passage Width550mm( 1200mm optional)
    5Passing SpeedNormally open-40persons/min
    6Manufacturing TechniqueCNC laser cutting
    7MotorDC motor
    8Gate Opening and Closing time≤ 0.4S
    9Infrared Sensors3-6 Pairs
    10Working environmentindoor and outdoor(added the rain shed )
    11Communication Distance≤1200M
    12Input Connection+12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms
    13Barrier MaterialAcrylic glass, SUS304 and so on
    14MaterialStainless steel 304,thickness is no less than 1.5mm
    15Running Life5--8 Million(Continuous Opening and Closing Operation)
    16Protect LevelIP54
    17Size1200*280*990mm
    28Operation PlaceSubwayStation, Hoverport, TourismSports,Exhibition, SwimmingHall,Residence Area,Enterprise’s Entrance and ExitAttendance,Gateway Guard,Charge Management,Special AccessControl

    How to guarantee kids will not be hurt when they using the Swing Barrier Gate ?


    1) The Swing Barrier Gate using epecial mechanism structure, the strength not enough to hurt them.

    2) We using high quality infrared , the erroneous judgement almost zero.

    3) The Swing Barrier Gate can using in outside totaly - Waterproof


    Standard functions & features of Swing Barrier Gate


    1. Turnstile can setting the working condition by press the button of main control board.
    2. The turnstile will closed the door when somebody enter the gate illegal, Tailgating or break into negative direction gate.
    3. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs
    4. Infrared reset function (Optional:4 pairs or 6 pairs Infrared)
    5. Can manager and long-range control the turnstile directly by managing the computer.
    6. Flashing light prompt function: it is convenient to find the turnstile problem by administrative staff


    Extended functions


    1.Size customization
    2.Add more infrared
    3.Voice Prompt Function
    4.LED counting function
    5.Program customization (for example : Normally open or closed can be adjust to meet the requirements of the different place. )

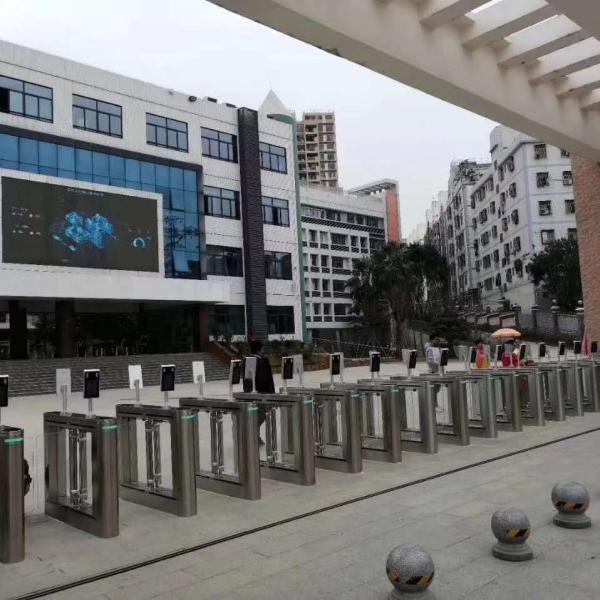

    Project case


    Export wooden box for package
