    Servo Motor Driving Speed Gate Turnstile 304 Stainless Steel Pedestrian Entry

    Ask Lasest Price
    Brand Name : RONA
    Model Number : RNCF H8008-10
    Certification : CE / ISO9001
    Price : negotiation
    Payment Terms : T/T,
    Supply Ability : 2000 units Per Month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

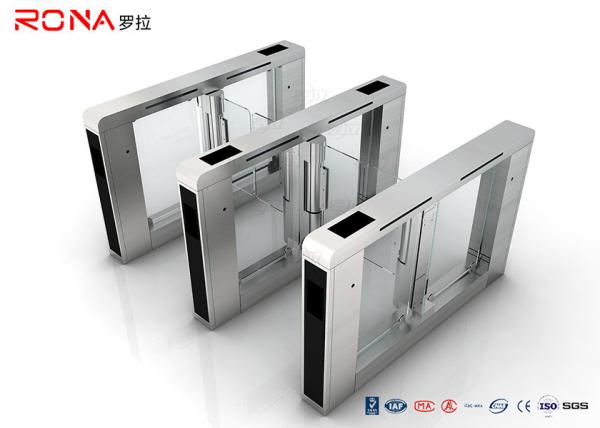

    Servo Motor Driving Speed Gate Turnstile 304 Stainless Steel Pedestrian Entry

    High-Speed gate 304 Stainless Steel Pedestrian Entry Security Speed Gate RFID Card Reader


    Introduce of speed gates :

    The speed gate turnstile is with high-quality and speed servo motor is configured and advanced servo control system is carried to truly achieve precise control, stable performance with no maintenance.Lossless mechanism structure is based on German technology adopted to ensure long lifespan.

    The matrix type photoelectric stereoscopic detection technology is adopted to sensitively detect the behaviors that threaten the passageway safety, such as illegal intrusion, reverse passing, tail-gating, and give out alarms through sound, light, etc. The turnstile can be combine with other security systems.


    Functions and Features of the sliding gates :


    • The turnstile opens automatically to evacuate people in the event of an emergency, such as fire, power failure, etc.
    • Infrared and mechanical anti-clamping functions provide double protection.
    • The gate can be pushed slowly when a sudden impact force is applied beyond the safety range so as to protect the machine and the pedestrian effectively.
    • All electric modules are designed to operate under the safety voltage of 24V, and are configured with residual current protective devices to effectively avoid electric shocks
    • RFID access controller, fingerprint reader, facial identify reader, QR code reader, barcode reader, consume system optional.



    Specification:

    Framework304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)
    Swing arm materialTempered glass or Acrylic
    Stretching out swing length260mm~550mm
    The inductive card reader dimensionequipped with the standard mounting brackets or tailor.
    Machine centerGermany technological motor
    Power voltageAC220V±10%, 50Hz±10%
    Driver motorservo motor
    In-built Infrared6 pairs/passageway
    Passing speed in normally40 persons/min(normal open);35 persons/min(normal closed)
    Passage Width600mm ~1150mm
    Swinging directionunidirectional or bi-directional
    Opening / closing time0.1 seconds
    Automatic reset time after the failure1 seconds
    Mean time to failure10millon
    Operation temperature-10℃ ~ +70℃
    Working EnvironmentIndoor/Outdoor (with rain-tent cover)
    Communications portRS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet

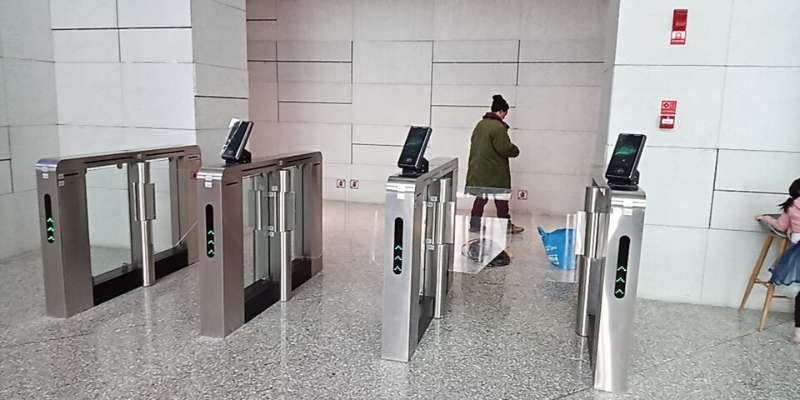

    Project Case
