    Fast Speed Stainless Steel Turnstiles Full Automatic DC 24V Brush Motor 1 Year Warranty

    Ask Lasest Price
    Brand Name : RONA
    Model Number : RNCF8088H / RNCF8088HS
    Certification : CE / ISO9001
    Price : negotiation
    Payment Terms : , T/T, L/C
    Supply Ability : 2000 units Per Month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

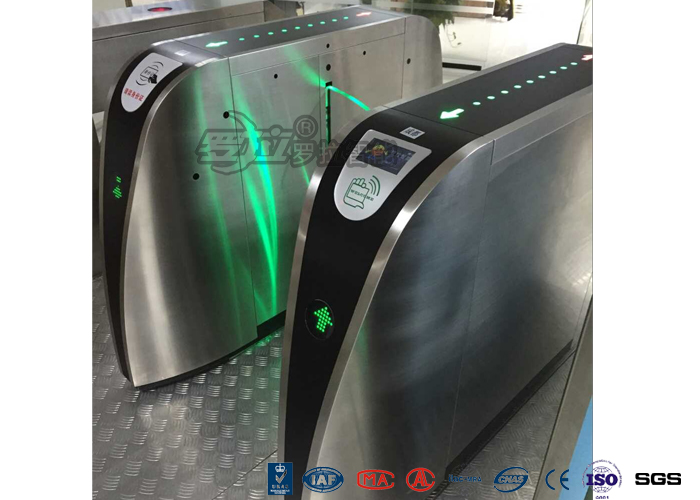

    Fast Speed Stainless Steel Turnstiles Full Automatic DC 24V Brush Motor 1 Year Warranty

    Fast Speed Flap Barrier Turnstile , Full Automatic Wing Barrier for Company,Flap Turnstile


    Introduction of Electronic flap barrier

    1) With function of self-examine and alarms, it is convenient for users to maintain and use.

    2) will raise the alarm by means of a sound or light when someone pushes in illegally.

    3) The mechanism is locked until a valid open signal is received.

    4) Reset automatically--Go signal will be cancelled if passage through is not completed within pre-set time. The standard default is 5 seconds.

    5) Unit can be adjusted permanent open or close when power off to meet different needs. Unit can be controlled and administered by remote control


    Feature & Advantages

    1. Self-checking function.
    2. Working types:
    2.1,bi-direction card reading;
    2.2.one direction card reading and another prohibited;
    2.3,one direction card reading and another free pass. Working types can be set in the control board.
    3. Automatic turnstiles arm drop automatically when power off ;Arm recover its position automatically when power on.
    4. Arm open&close time can be set by user in control boards
    5. Manager can set pass time in control boards.
    6. Flap barrier automatic alarm when illegal pass until passenger get an authorized card.
    7. Flap barrier is RS485 interface for long-distance control.
    8. Human safe: optical & mechanical anti-impact.Optical sensor detect passenger position.100% avoid passenger hurt during in passing . If arm meets any obstacle, arm stop working immediately .
    9.LED display passengers numbers.
    10. Direction display guide passenger go or stop.
    11. Control software regulate authorized passengers numbers.
    12. Stable running with low- noise.


    Technical parameters

    ModelRNCF8088HRNCF8088HS
    ItemSingle flap barrierDouble flap barrier
    Power consumption50W100W
    Housing Size1600x300x1020 mm
    Housing material1.5--2mm, #304 Stainless Steel, Matt finish
    Drive motorDC brushless motor
    Channel width550mm
    Pass speed30~40 persons/min.
    Power supply220Vac 50Hz or 110Vac 60Hz
    Input interfaceSwitch Volume or 12V Level
    Communication interfaceRS485
    Gate open while power offYes
    Working temperature-30°C~+70°C
    Working environmentsIndoor, outdoor
    Relative humidity≤95% coagulation free
    MCBFMore than 5 millions
    Warranty1 year
    Outside packingPlywood box, 1520 x 420 x 1140mm
    Pieces per box1 pcs / box
    Gross weight110KG130KG

    Application

    Flap turnstiles are mainly used in parks, subway, customers, airport, bus station, office building, scenic spot, community, attractions, and exhibition hall doors, residential, Construction Sites, Industrial Plants, Marquee Golf Tournaments, State Fairs, Special Sporting Events and Festivals!
