    Safety RFID Access Control Turnstile Revolving Gate For Residential Entrance

    Ask Lasest Price
    Brand Name : RONA
    Model Number : RNCF21238FS-2U
    Certification : CE / ISO9001
    Price : negotiation
    Payment Terms : T/T,
    Supply Ability : 2000 units Per Month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    Safety RFID Access Control Turnstile Revolving Gate For Residential Entrance

    Safety RFID Access Control Turnstile Revolving Gates For Residential Entrance


    Model: RNCF21238FS-2U Double Lane Full Height Turnstile

    Product Description:
    ● Safety full height turnstile is often used for high security access control solutions.
    ● Residential Entrance Revolving Turnstile is designed to meet fire-control passage requirements, and turnstile gate will open automatically when power off.

    ● Access control full height turnstile is equipped with international interface, can be easily integrated with other R/W device and managed through remote supervision computer.

    ● RFID Access Revolving Turnstile Gate is with a variety of operating modes you can choose, you can set a one-way or two-way control.

    ● Passing direction of rotating gate will be shown by LED light and passengers will know which direction is allowed to pass.

    ● The resistance ,whose area is large , access control security turnstile gate is suitable for place with small flow of people and high security requirements.


    Standard Features&Functions:

    1.

    The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader,consumption system, ESD system and access control system etc, Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID/IC card etc.

    2.Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller
    3.

    Available with 4-arm, 90 degree spacing (default) or 3-arm, 120 degree spacing (optional).

    4.

    Anti backup function: to prevent reverse rotation once the mechanism has move 60 degree from home.

    5.The running status of device can be set up through pressing the built-in small keyboard of the main control board.
    6.

    When power off, the center rotor will be set free model (default) or be locked model (optional).

    7.

    Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.

    8.

    Reset automatically function: Go signal will be cancelled if passage through is not completed within pre-set time. The standard default is 10 seconds (time adjustable by changing parameter of main control board).

    9.

    Remote control and management function: Through the management computer to realize remote control and management.


    TECHNICAL SPECIFICATIONS:

    Framework:304# Stainless Steel (default), 201# or 316# Stainless Steel (optional)
    Thickness of ply:1.7mm
    Finish:Brushed surface / Polished surface / Anti-Fingerprints surface
    Shell’ size:L1500mm*W1350mm*H2200mm (Standard)
    Arm’s length:600mm
    Arm diameter:38mm
    The inductive card reader dimension:equipped with the standard mounting brackets, or tailor.
    Card Reader mounting:Card readers may be mounted on the surface of the barrier, or the card readers may be mounted flush mounted. There is an output to interlock the card.
    Operation voltage:AC220V±10% 50Hz±10%
    Time of opening / closing:0.2s
    Time to work after power on:3s
    Reset time after breaking down:10s
    Transit speed:30 persons/minute
    MTBF:>5 million
    Communications Interface:RS485, distance ≤1200m (standard) ; Available to connect with external CAN BUS and Ethernet (Optional)
    Input interface:relay dry contact signal; +12V level signal or pulse width>100ms 12V pulse, drive current>10mA
    Relative humidity:≤90% Non-condensing
    Working Environment:-10℃ ~ 70℃, Indoor / Outdoor
    Certificates:CE certified

    Product usage:
    When using Access Control Revolving Turnstile Gate, users should obey the passing rules of “Swiping cards outside the yellow line” and “one person one card, passing in turn”.


    Note: “Swiping cards behind the yellow line” and “one person one card, passing in turn”means user should stand outside of the yellow line to swipe card; each time a valid card swiped only allows one person to pass through and the behind or opposite user should wait for the front user finishing passing then swipe card to pass through.

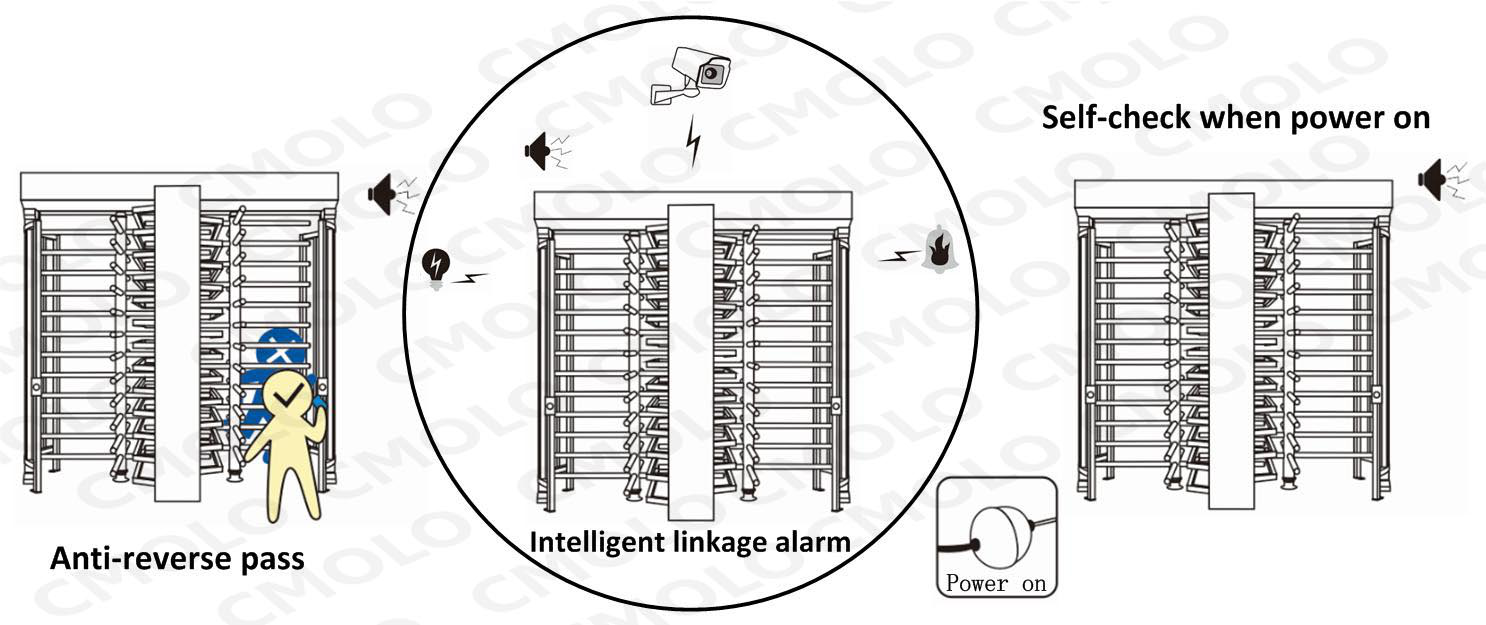

    Intelligent linkage alarm:
    Illegal traffic events can be linked with other alarm monitoring equipment: such as access control systems, video management systems.
