    High Security Speed Gate Turnstile RFID Access Control For Intelligent Buildings

    Ask Lasest Price
    Brand Name : RONA
    Model Number : RNCF H8008-10
    Certification : CE / ISO9001
    Price : negotiation
    Payment Terms : , T/T
    Supply Ability : 2000 units Per Month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    High Security Speed Gate Turnstile RFID Access Control For Intelligent Buildings

    High Security Speed RFID Barrier Gate access control turnstile gate for Intelligent buildings


    PRODUCT DESCRIPTIONS:


    The fastlane turnstile combines slim line styling with one of the industries widest passages. It has clear, bi-directional swinging motorized barrier panels and a stylish, architectural design that enhances any access control installation. Its sleek design and smaller footprint makes it compatible with any upscale business or institutional environment.


    As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for.


    Highest Security speed security swing turnstile rfid automatic gate​

    The product is a high-tech product aimed at the pedestrian access intelligent management, which is a upgraded product based on intelligent tri-turnstile, swing barrier, average wing barrier. This product is well-processed and newly-designed with full functions, high grade, and mainly used in high grade places such as top-grade community, intelligent mansion, hotel, subway, port, club etc. The product integrating with mechanism, electron, microprocessor and various identification technology is compatible with card reader devices such as IC card, ID card, bar code, fingerprint and so on. By configuring all kinds of identification devices and adopting reliable safeguard devices, alarm devices, direction indicator etc, it is able to achieve acess intelligentized control and management.


    SPECIFICATIONS:

    Framework304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)
    Thickness of ply1.7mm
    Finishbrushed surface, polishing surface
    Shell's size1600mm*160mm*1000mm (default)
    Swing arm materialTempered glass or Acrylic
    Stretching out swing length260mm~450mm
    The inductive card reader dimensionequipped with the standard mounting brackets or tailor.
    Machine centerGermany technological motor
    Power voltageAC220V±10%, 50Hz±10%
    Driver motorDC36 servo motor
    Main-board voltage12V DC
    In-built Infrared6 pairs/passageway
    Passing speed in normally40 persons/min
    Passing speed in normally closed mode25~30 persons/min
    Passage Width600mm ~1150mm
    Swing arm transmission angle180°
    Swinging directionunidirectional or bi-directional
    Opening / closing time0.1 seconds
    The time required to running state after power on3 seconds
    Automatic reset time after the failure1 seconds
    Mean time to failuremin. 10 000 000
    Operation temperature-10℃ ~ +70℃
    Relative humidityless than 95% not condensed
    Working EnvironmentIndoor/Outdoor (with rain-tent cover)
    Input portrelay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal
    Communications portRS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet

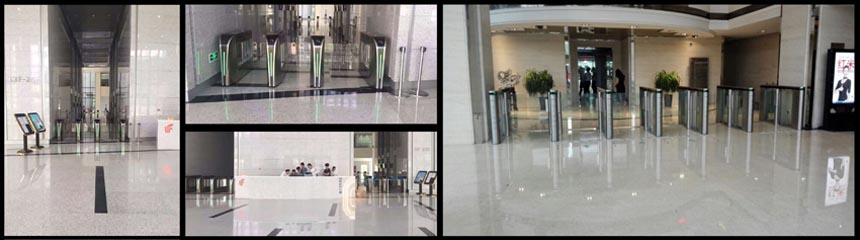

    Reference Product project picture


    High Security Speed Gate Turnstile RFID Access Control For Intelligent Buildings


    Export wooden box
