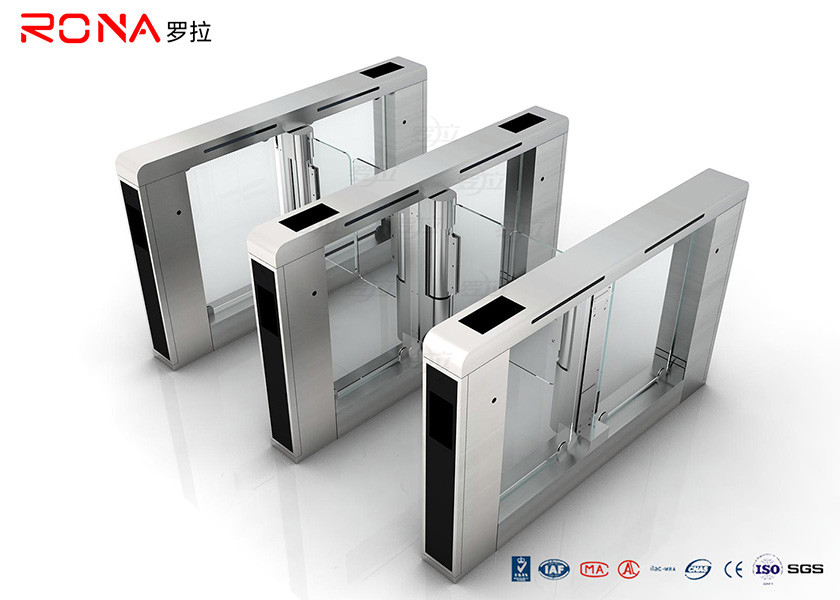

Stainless Steel Automatic Speed Gate With RFID Card Reader
PRODUCT DESCRIPTIONS:
The speed gate turnstile is with high-quality serve motor is
configured and advanced servo control system is carried to truly
achieve precise control, stable performance with no maintenance.
Lossless mechanism structure is based on German technology adopted
to ensure long lifespan.
SPECIFICATIONS:
Framework | 304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional) |
Thickness of ply | 2.0mm |
Finish | brushed surface, polishing surface |
Shell's size | |
Swing arm material | Tempered glass or Acrylic |
Stretching out swing length | 260mm~550mm |
The inductive card reader dimension | equipped with the standard mounting brackets or tailor. |
Machine center | Germany technological motor |
Power voltage | AC220V±10%, 50Hz±10% |
Driver motor | DC36 servo motor |
Main-board voltage | 12V DC |
In-built Infrared | 6 pairs/passageway |
Passing speed in normally | 40 persons/min |
Passing speed in normally closed mode | 35 persons/min |
Passage Width | 600mm ~1150mm |
Swing arm transmission angle | 180° |
Swinging direction | unidirectional or bi-directional |
Opening / closing time | 0.1 seconds |
The time required to running state after power on | 3 seconds |
Automatic reset time after the failure | 1 seconds |
Mean time to failure | min. 10 000 000 |
Operation temperature | -10℃ ~ +70℃ |
Relative humidity | less than 95% not condensed |
Working Environment | Indoor/Outdoor (with rain-tent cover) |
Input port | relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal |
Communications port | RS232/ RS485 electric standard, communications range ≤1200m.
Available to connect with external CAN BUS and Ethernet |
Features
1. The turnstile opens automatically to evacuate people in the
event of an emergency, such as fire, power failure, etc.
2. Infrared and mechanical anti-clamping functions provide double
protection.
3. The gate can be pushed slowly when a sudden impact force is
applied beyond the safety range so as to protect the machine and
the pedestrian effectively.
4. All electric modules are designed to operate under the safety
voltage of 24V, and are configured with residual current protective
devices to effectively avoid electric shocks.
5. RFID access controller, fingerprint reader, facial identify
reader, qr code reader, barcode reader, consume system optional.
APPLICATIONS:
1. Public Places: lobby entry, Subway, Airports, Stations, Library,
Bookstores, Parks, Exhibition halls, Stadium, Museums, Apartments,
Residence Area, Offices, Commercial buildings.
2. Entertainment Places: Movie theaters, Fitness halls, Country
clubs, Fairground, Clubs, Swimming Hall, Fitness Gym.
3. Business Organizations: Hotel, Factory, Bank, Prison, Hospital,
School, Enterprise’s Entrance and Exit Attendance.
