    Playground Zoo Museum Swing Gate Turnstile Swing Barrier Gate With Ticketing System

    Ask Lasest Price
    Brand Name : RONA
    Model Number : RNCF 7008P
    Certification : CE / ISO9001
    Price : negotiation
    Payment Terms : , T/T
    Supply Ability : 2000 units Per Month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

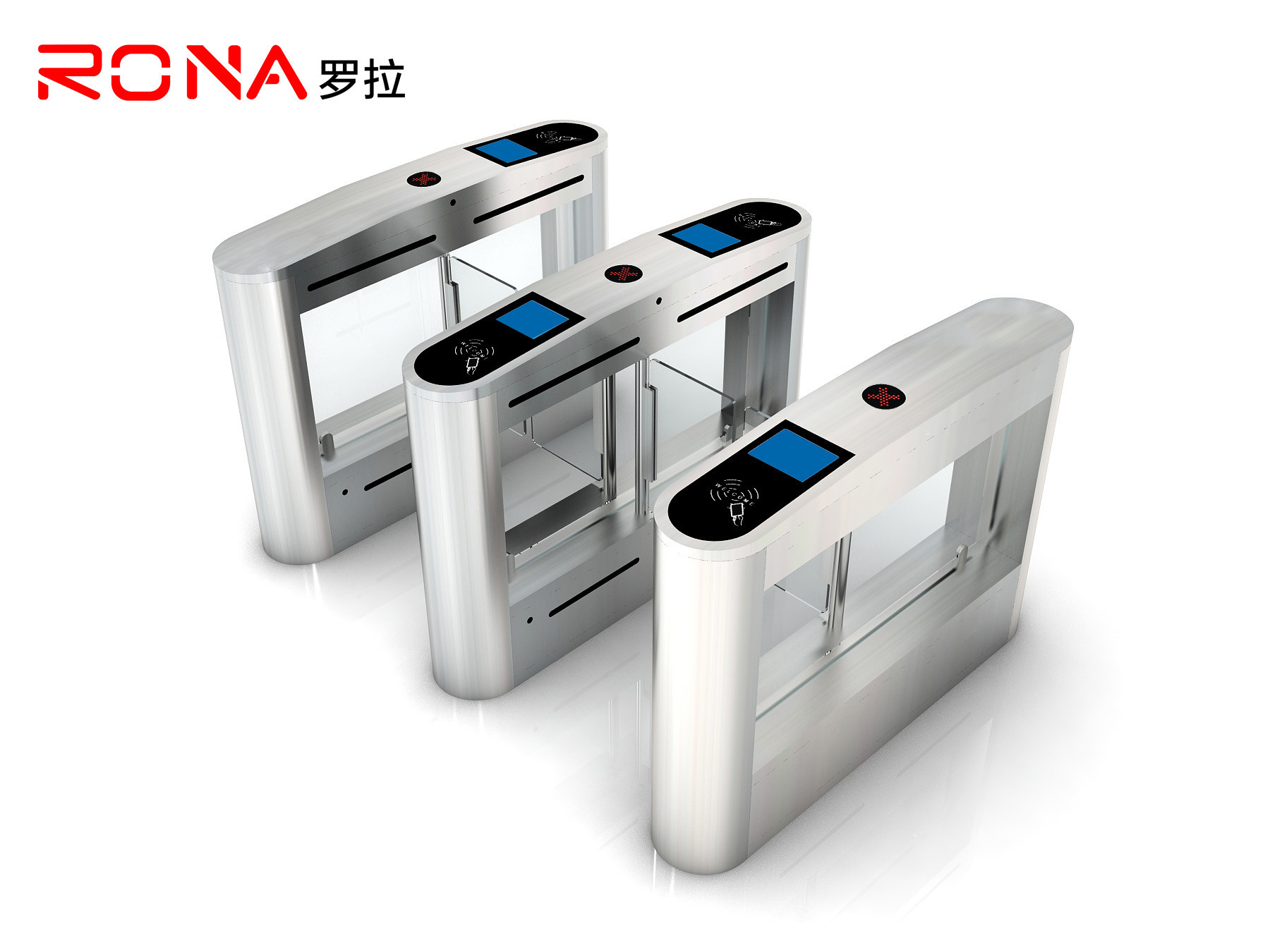

    Playground Zoo Museum Swing Gate Turnstile Swing Barrier Gate With Ticketing System

    Swing Gate Turnstile Playground/ Zoo/World Heritage Museum Barrier Gate With Ticketing System


    PRODUCT DESCRIPTIONS:

    Swing Turnstile gate is a device used for pedestrian channel entry/exit management. With quick openning, safety and convenient features, it is the ideal management equipment for pedestrian high frequency access.
    2. The device housing are formed by inported SUS#304 stainless steel stamping, beautiful and generous shape, anti-rust, durable.
    3. Standard electrical interface for external use, easily integrated with RFID card reader, barcode reader, fingerprint, face recognition, iris recognition etc.
    4. Specially designed to meet the fire requirements of the function, convenient for people to evacuate in an emergency.
    5. Optical Turnstiles are suit for elegant and luxury entrance solutions.


    SPECIFICATIONS:

    Framework304# Stainless Steel (default), or 316# Stainless Steel or paint (optional)
    Thickness of ply1.5/2.0mm
    Swing arm materialTempered glass or Acrylic
    Stretching out swing length250mm~550mm
    The inductive card reader dimensionequipped with the standard mounting brackets or tailor.
    Machine centerGermany technological motor
    Power voltageAC220V±10%, 50Hz±10%
    Driver motorDC brushless motor
    Main-board voltage12V DC
    sensor detection6pairs/passageway
    Passing speed in normally open mode40 persons/min
    Passing speed in normally closed mode30-35 persons/min
    Passage Width600mm ~1150mm
    Swing arm transmission angle180°
    Swinging directionunidirectional or bi-directional
    Opening / closing time0.1 seconds
    The time required to running state after power on3 seconds
    Automatic reset time after the failure1 seconds
    Mean time to failure5 million
    Operation temperature-10℃ ~ +70℃
    Relative humidityless than 95% not condensed
    Working EnvironmentIndoor/Outdoor (with rain-tent cover)
    Input portrelay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal
    Communications port

    RS232 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet



    Swing Gate Turnstile​ Key Features:

    •The lanes can be configured for entry, exit or bi-directional access.

    •The acrylic will retract upon receiving valid signal and close immediately after the pedestrian crosses.

    •The side hinge door provides an easy avenue for maintenance .

    •Customization to include card reader, biometric finger print, ticket collection etc., is possible.

    •Each lanes comes with Infrared (IR) beam sensor to ensure safe access. It can be extended to detect 3 levels of heights, including height of children, which are lower.

    •The motor will disengage when an object tires to block the flap from closing, providing an additional safety mechanism for the pedestrian.


    APPLICATIONS:


    Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Buildings, Banks, Museums and Airports, etc high-end places.


    Playground Zoo Museum Swing Gate Turnstile Swing Barrier Gate With Ticketing System


    Exhibition


    Delivery


    Your concern:
    Q1: Do you have English version system?
    A: Yes, we can provide standard English version system. Also you can use your own system as well.
    Q2: Does the equipement include control board?
    A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.
    Q3: Can we connect your access control system with our system?
    A: Yes, we provide SDK and Software development service with connection port.
    Q4: How can we install the turnstiles/barrier gates? Is it easy?
    A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.
    Q5: What is your company’s strength?
    A: We are the top 10 manufacturer in turnstile field in China. And we are listed company with famous brand in China.
    Q6: How do you do after-sale service?
    A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
    Q7:How about the lead time?
    Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days. The customized products need 15-20 working days.
    Q8: How many years of warranty?
    A: We provide 1 year warranty for our products.
