    Smart Infrared Sensor Swing Gate Turnstile Multiple Color Options

    Ask Lasest Price
    Brand Name : RONA
    Model Number : RNCF F5008HD
    Certification : CE/ISO9001
    Payment Terms : T/T
    Supply Ability : 2000 Unit Per Month
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    Smart Infrared Sensor Swing Gate Turnstile Multiple Color Options

    1600mm*140mm*1000mm Smart Infrared Sensor Swing Gate Turnstile Multiple Color Options


    Brief Introduction

    Swing gate turnstile is the combination of machinery, electronic, CPU control and variety of personal authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are compatible with the flap barrier.

    Functions & Features

    • Motor: DC brushless motor,compact structure,large torque,low noise and wear resistance.
    • Control System: precise control, more flexible running,less mechanical impact and longer service life.
    • Technology: Running speed adjustable, automatic opening when power off, meet different access requirements and have a better experience.
    • Anti-push:Self-adaptive anti-push function,high transformation ratio gear box,increasing torque for strengthen resistance and the stability,reducing the failure rate and cost pressure.

    Passage Mode



    Parameters

    Framework304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)
    Finishbrushed surface, polishing surface
    Swing arm materialTempered glass or Acrylic (optional)
    Power voltageAC220V±10%, 50Hz±10%
    Driver motorDC36 servo motor
    Main-board voltage12V DC
    In-built Infrared6 pairs/passageway
    Passing speed in normally open mode40 persons/min
    Passing speed in normally closed mode25-30 persons/min
    Passage Width550-1000mm
    Swing arm transmission angle180°
    Swinging directionunidirectional or bi-directional
    Opening / closing time0.1 seconds
    The time required to running state after power on3 seconds
    Automatic reset time after the failure1 seconds
    Mean time to failuremin. 10 000 000
    Operation temperature-10℃ ~ +70℃
    Relative humidityless than 90% not condensed
    Working EnvironmentIndoor/Outdoor (with rain-tent cover)
    Input portrelay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal
    Communications portRS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet


    Our Company

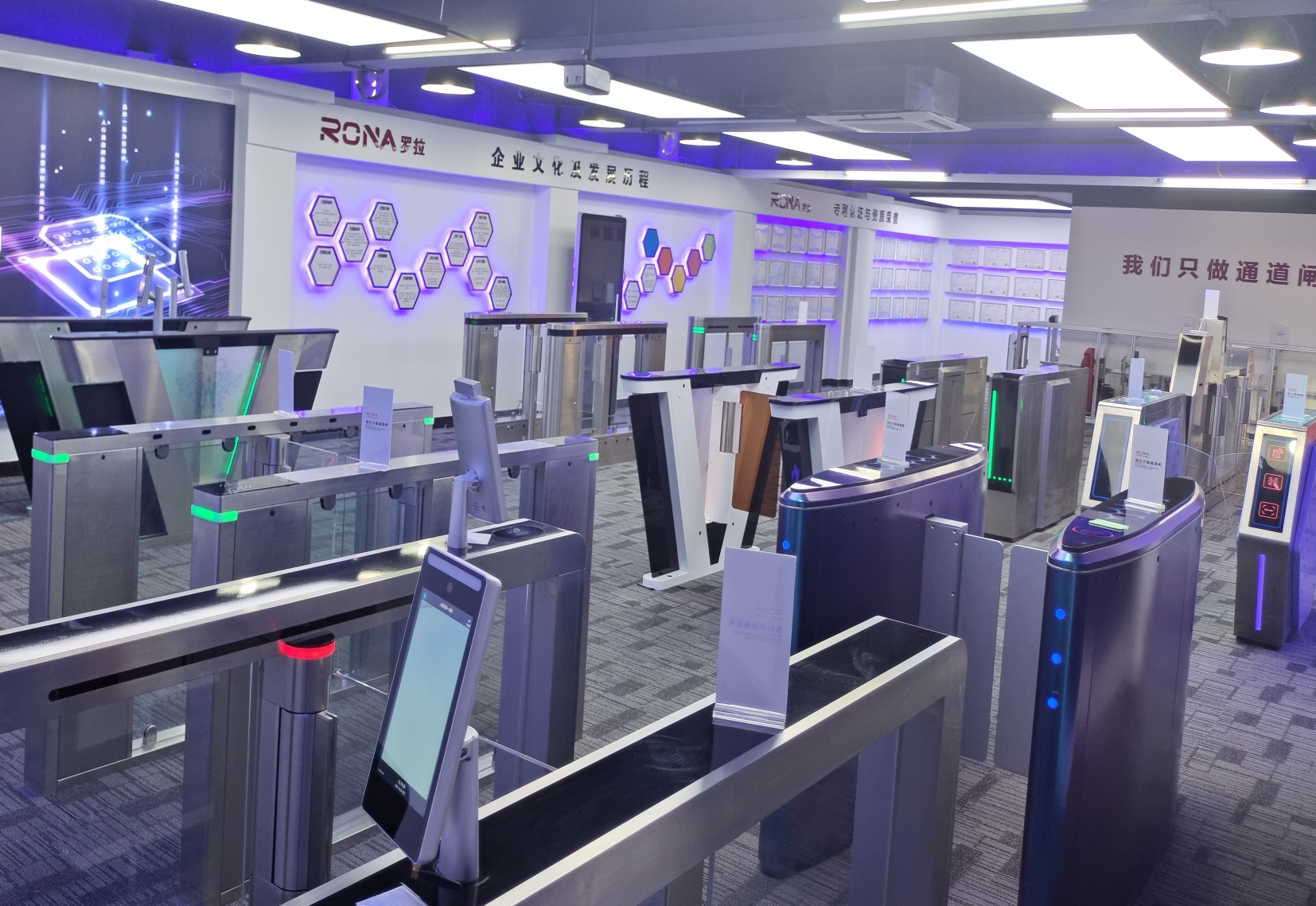

    Exhibition Hall
