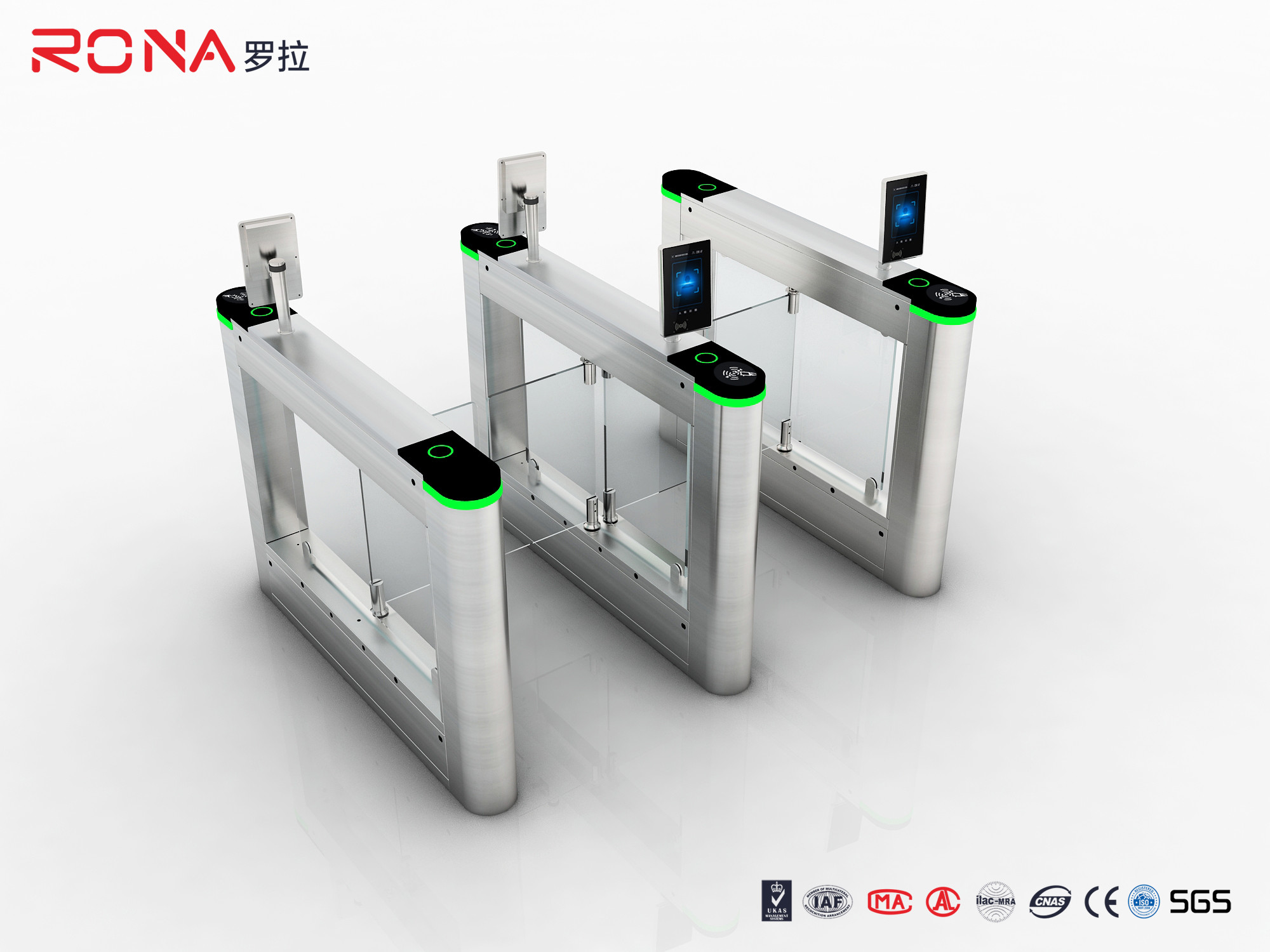

240V Pedestrian Swing Barrier Turnstile Gate For Security Entrance
240V Pedestrian Swing Barrier Turnstile Gate For Security Entrance
Control With Face Recognition
Prduct Decripetion
Intelligent Vertical Swing Turnstile ---can be compatible with IC
card , ID card ,barcode card , fingerprint reading card recognition
device used for staff, provide civilized , orderly access methods;
effectively manage the access of staff . Can be widely used in the
station, wharf subway , factories, office building , hotel , clubs,
intelligent community , enterprises and institution that need
intelligent access management.
SPECIFICATIONS:
| Framework | 304# Stainless Steel (default) or 316# Stainless Steel or paint
(optional) |
| Thickness of ply | 1.5mm |
| Finish | brushed surface, polishing surface |
| Shell's size | L1400*W150*H1020MM |
| Swing arm material | SUS304 or Acrylic |
| Stretching out swing length | 250mm~475mm |
| The inductive card reader dimension | equipped with the standard mounting brackets or tailor. |
| Machine center | Germany technological motor |
| Driver motor | Bruless Motor |
| Main-board voltage | 12V DC |
| In-built Infrared | 4~6 pairs/passageway |
| Passing speed in normally open | 25~30 persons/min |
| Passing speed in normally closed mode | 30~35 persons/min |
| Passage Width | 550mm ~1000mm |
| Swing arm transmission angle | 180° |
| Swinging direction | unidirectional or bi-directional |
| Opening / closing time | 0.1 seconds |
| The time required to running state after power on | 3 seconds |
| Automatic reset time after the failure | 1 seconds |
| Mean time to failure | 5 million |
| Operation temperature | -10℃ ~ +70℃ |
| Relative humidity | less than 95% not condensed |
| Working Environment | Indoor/Outdoor (with rain-tent cover) |
| Input port | relay dry contact signal; +12V level signal, pulse width >100ms,
DC12V pulse signal |
| Communications port | RS232/ RS485 electric standard, communications range ≤1200m.
Available to connect with external CAN BUS and Ethernet
|
Standard functions & features of Swing Barrier Gate
1. Alarm function:when arms are pushed by force illegally, alarm
will be triggered automatically and arms will be set
locked.turnstile can check by itself when it is have problem, it is
good for customer to maintain and use
2. Turnstile can setting the working condition by press the button
of main control board.
3. Anti-pinch function: turnstile have Mechanical/ infrared
induction Anti-pinch functions( when it is meet the hinder during
the reset time, the electrical machine closed work automatically in
specified time, the turnstile will default the delayed and reset
again till reset succeed)
4. The turnstile will closed the door when somebody enter the gate
illegal, Tailgating or break into negative direction gate.
5. Before received the open signal, the turnstile will lock
automatically
6. The arm have the collision avoidance function: when the
turnstile arm closed, if it is under the collision, the arm will
open to protect the Transmission of inner machine.
7. Automatic Reset Functions: after you swap the card, during the
specific time (the system is 10s), if you didn’t pass the
turnstile, the system will cancel your authority automatically to
pass the gate, (reset time is 1~60s you can adjust it what time is
suit for you). totally meet the fire protection needs
8. Arm Turning: Single or Bi-direction
9. Anti-rush function: if there is no open single, arm will be
holding tightly.
10. Stable running with little noise.
FAQ
Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use
your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to
management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with
connection port.
Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before
sending our products. You just need fix the gates with screws, and
connect power supply cables and internet cables.Also we provide one
sheet of specific manual specification in the package.
Q5: What is your company’s strength?
A: We are the top 10 manufacturer in turnstile field in China.
Q6: How do you do after-sale service?
A: We provide life-time technology support on line, by emails,
video, phone etc.
Q7:How about the lead time?
Normally we have raw material in stock for the hot sale models of
standard products. Regular products need 5-7 working days. The
customized products need 15-20 working days.
Q8: How many years of warranty?
A: We provide 12 warranty for our products.
