Brand Name : | RONA |
Model Number : | RNCF 8008-17 |
Certification : | CE/ISO9001 |
Price : | negotiation |
Payment Terms : | L/C, T/T |
Supply Ability : | 2000 unit per month |
Delivery Time : | 7-15 work days |
Product Introduction
The speed gate turnstile gate can be used in many places by virtue of its many advantages. In-office buildings, libraries, airports, etc, which can effectively protect security to access control.
Swing barrier turnstile is easily capable of handling high volume and abusive conditions. It is widely applied to bus stations, ports, neighborhoods, hotels, clubs, and companies that want to carry out intelligent management on passage.
Functions&Features
Parameters
Size: | L1100*W250*H990 mm |
Motor type: | Servo motor |
Main board type: | V2.621 |
Normal running life: | ≧5 million times |
Sensor quantity: | 9 pairs |
Pass speed: | 30 person/min |
Housing material: | 304 stainless steel&Stoving varnish |
Passage width: | 500-1100MM |
Swing arm material: | Acrylic/Tempered glass/Stainless steel pipe(optional) |
Input interface: | AC100-240V,50/60HZ |
Working voltage: | DC24V |
Working power: | 100W |
Working temperature: | -15℃-70℃ |
Working humidity: | 5%-90% |
Working environment: | Indoor/Semi-outdoor(with shade) |
Input interface: | Relay dry contact signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA |

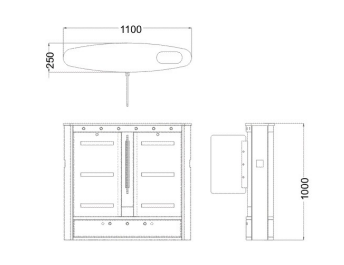

Dimenson
![]() |
