    Face Scan Pedestrian Barrier Gate Swing Turnstile Automatic Door Entrance Solution In Mansion

    Ask Lasest Price
    Brand Name : RONA
    Model Number : RNCF1088 / RNCF1088S
    Certification : CE / ISO9001
    Price : negotiation
    Payment Terms : , T/T, L/C
    Supply Ability : 2000 units Per Month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

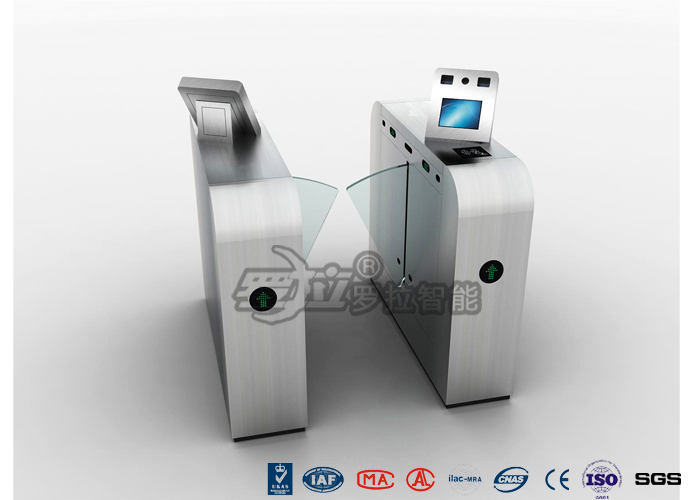

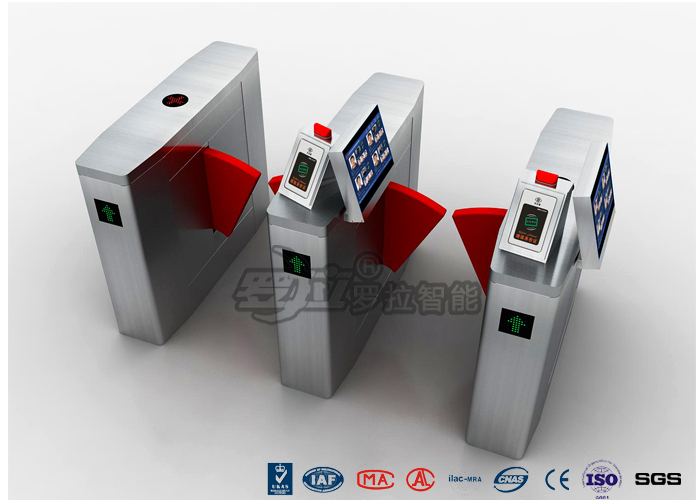

    Face Scan Pedestrian Barrier Gate Swing Turnstile Automatic Door Entrance Solution In Mansion

    ZK face scan with flap gates turnstile using in automatic door solution efficient entrance solution in mansion



    Flap barrier gates:

    Our Turnstile can combine with different kinds of access readers,like: RFID Reader&Fingerprint Reader &Coin Machine&Barcode System&ESD Tester Access Control(If you have access control system,you can only purchase our turnstiles,if not, our side will install the access control system for you),except acess system,also can use remote.


    Feature & Advantages

    1. Fault detection and alarm functions, easy to use and maintenance.
    2. The running status can be programmed and controlled with the built-in keyboard on the main board.
    3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).
    4. Anti-breakthrough function. The gate is locked automatically until opening signal received
    5. Synchronization functions (for dual gate equipments).
    6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
    7. Gate can be set as normally open or normally closed.
    8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).
    9. Direction can be set as single-direction or bi-direction.
    10. LED direction indicator.
    11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
    12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.


    Technical parameters

    • Compact design yet offer sufficient space to integrate any access
    • Angles: 90 or 120°
    • Size:1420x310x1005mm or customized
    • Drive: manually operating
    • Rotation direction: bi-directional and unidirectional
    • Controller: adapts micro-computer controller can be 7 programmed according to customer needs
    • Interface: standard input and output interfaces can be used for other integration systems
    • Signal source: dry contact and high-low level signals
    • Roller working voltage: 220V AC ±10%
    • Voltage: 220V AC ±10%, 24V DC at 3A ±10% and 12VDC at 3A ±10%
    • Indoor/outdoor temperatures: -25 to 70°C
    • Indoor/outdoor humidity range: 5 to 95%
    • Switching time: 1s
    • Pass rate: 35 persons/min
    • Fault status: power-off and giving free exit/entry path
    • Movement failure rate: 500 million trouble-free
    • Frame protection: waterproof seal
    • Card reader location: 4
    • Installation and maintenance access: 1
    • Optional: IC/ID reader, barcode reader, other R/W equipment, UPS and infrared detector
    Model No.RNCF 1088RNCF 3088RNCF 6088RNCF 9088
    Size(mm)1410x340x10051400x350x9801400x280x9801400x280x980
    Unlock time0.2s0.2s0.2S0.2S
    Pass rate35 person/min35 person/min35 person/min35 person/min
    Pass width≤550mm≤600mm≤550mm≤550mm
    input100V~240V100V~240V100V~240V100V~240V
    Motor voltage24V24V24V24V
    environment-25~+70-25~+70-25~+70-25~+70
    Power consumption35w35w35W35W
    input12v dry contact12v dry contact12v level signal or Pulse Wide>100ms-25~+70
