2016 newest Anti - Collision Walk Through Metal Swing Gate For Bus
Station Card Reader System

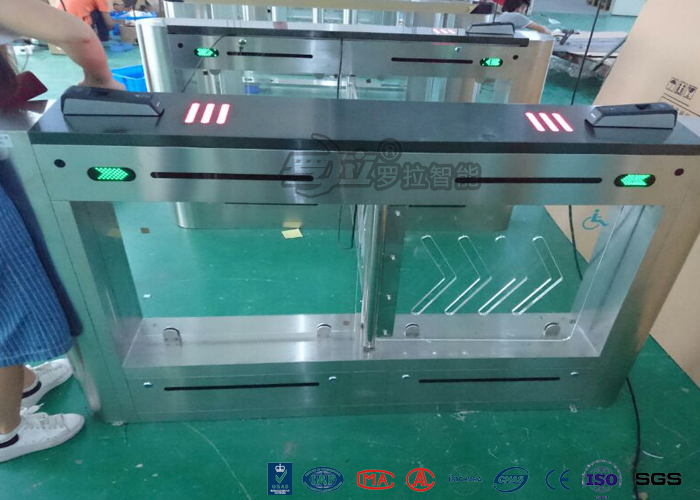

Introduce of swing barrier gates
Swing barrier is an ideal passenger access management device
produced by our company after years research and development. Our
standard product, made of 304 stainless steel, integrating with
mechanism, electron, microprocessor and various identification
technology, is able to achieve access intelligent control and
management by configuring all kinds of identification devices.
Direction indicator and well-extended LED counting display.
Bridge swing turnstile is integrated with mechanism, electric and
micro-controller and various kinds of identification technologies,
compatible with IC, ID, barcode, fingerprint reader and so on to
prvoide intelligent control and management to flow control. This
turnstile series is made of 304 stainless steel, which is
rustproof, durable, and can provide orderly passage to people, anti-illegal entry or exit. It
can be widely used in the station, wharf subway , factories, office
building , hotel , clubs, intelligent community , enterprises and
institution that need intelligent access management.
Swing barrier gates Standard features & functions
1, Barriers made from stainless steel, acrylic glass, etc;
2,Mechanical Anti-Pinch structure enable motor to stop working
automatically in given time if there is something on the way during
reset, and reset again after default time delay
3, Automatic counting indicating passenger's number.
4, Human base model indication function, real time displaying,
improve the passing rate and convenient maintain
5, Anti pinch function, barriers auto open when power shut, insure
user safety.
6, Break-in ,tail ,over-pass and reverse alert function in order to
keep orderliness and effective manage
7, Super combination capacity, adjustable model on site
8, Barriers move speed auto adjust with card reader, problem
self-recovery, error calls function which could convenient users
and operators
8, Standard input/output port, meanwhile leaving a port space for
installing RS485 communication, connect and manage the integrated
systems through the remote PC.
10, Turned up-coverage is water-proof and easy maintain.
11, Open direction adjustable even though power off
Basic information of swing barrier gates
| Housing material | 304 grade stainless steel(thickness 1.5mm) |
| Length of arm | 600mm(standard)/500-900mm(option) |
| Arm's rotation angle | 180 degree |
| Swing direction | single or bi-direction |
| Driving electromotor | DC Brush electromotor 50W/24V |
| Normal useful life | 5 million times |
| Working voltage | AC220V±10%V/50±10%Hz,AC110V±10%/50Hz±10% |
| Temperature | -10C - 50C |
| Working environment | Indoor ,outdoor(with a tent over) |
| Transit speed | 40 persons/min(open often) 25-30 person/min(close often) |
| Open/close time | 2~3s |
| Starting time after power on | 3s |
| Automatic reset time after fault | 10s |
| Communication interface | RS485 standard distance less than 1200 meters |
| Input interface | Dry contact signal or +12V level signal or DC12V pulse signal with
width of more than 100ms, driving current > 10mA |
| Relative humidity | <= 90% no condensation |
