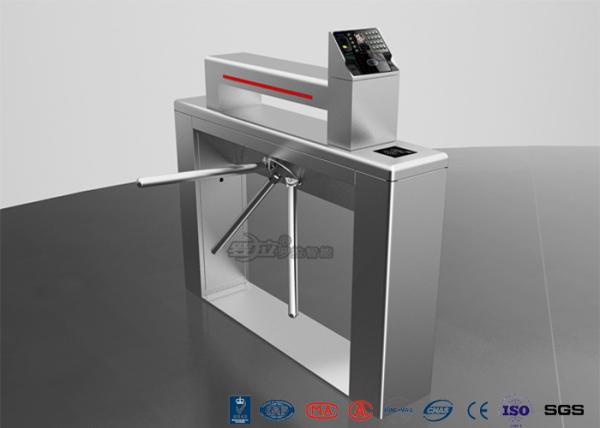

    Entry Systems Access Control Turnstiles with Led Display , Road Barcode Electric Turnstile

    Ask Lasest Price
    Brand Name : RONA
    Model Number : RNCF 738- nonstandard
    Certification : CE / ISO9001
    Price : negotiation
    Payment Terms : T/T,
    Supply Ability : 2000 units Per Month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    Entry Systems Access Control Turnstiles with Led Display , Road Barcode Electric Turnstile

    Road Barcode Electric Turnstile Entry Systems Access Control Led Display



    PRODUCT CLASSIFICATIONS:
    1) the turnstile provides a basic tripod to control access smoothly and effectively by basic operation, and also prevent illegal in and out.
    2) The machine is well in design, rustproof, durable and can resist external destroy.

    3) According to different machine centers, intelligent tripod turnstile can be divided into fully automatic tripod turnstile and semiautomatic tripod turnstile.
    4) Their differences are fully automatic product can finish any work by power. The arm will automatically drop when it is powered off.

    5)The arm can drop automatically when it is powered off,but when the power is turned off, the arm will be raised by hand.


    PRODUCT DESCRIPTIONS:
    1. Rainproof housing, #304 stainless steel.
    2. CNC stamping and laser drilling, presenting a novel and elegant appearance.
    3. Innovative and unique mounting surface ensures simple and convenient installation for system integrators.
    4. Direction can be set as single-direction or bi-direction.
    5. Direction indicator.
    6. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)
    7. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
    8. Arms auto drop when power off, complying with fire safety requirements.
    9. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.
    10. Dual-bearing device, keeping the gate in balance when there is external force.


    TECHNICAL SPECIFICATIONS:

    Framework:304# Stainless Steel(default), 316# Stainless Steel or Paint (optional)
    Thickness of ply:1.3mm (default)
    Finish:① stainless steel surface: brushed surface, polishing surface (default) or anti-fingerprint surface (optional); ② painted surface: any color surface or anti-fingerprint surface (optional)
    Dimension(L*W*H):1200mm*280mm*990mm (default)
    Arm material:Steel
    Arm length:500mm
    Arm diameter:38mm
    The maximum tolerance of the pole:80Kg
    Working driving force of the pole:3Kg
    Read facilities mounting:may be mounted on the surface of turnstile, or flush mounted, or rack mounting. There is an output to interlock the Read/write facility.
    Power voltage:AC220V±10%, 50Hz±10%
    Work movement:Germany technology electromagnetic valve
    Semi-automatic type:In-built hydraulic shock absorber
    Main-board voltage:12V DC
    Passage Width:550mm
    Passing speed in normally open mode:30~40 persons/min
    Passing speed in normally closed mode:25~30 persons/min
    Time of opening / closing:0.2 seconds
    The time required to running state after power on:5 seconds
    MTBF:550mm
    Operation Temperature:-10℃ ~ 70℃
    Relative humidity:≤95% not condensed
    Operation environment:Indoor/Outdoor
    Input port:relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal
    Communications port:RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet
    Certification:CE
    Warranty:12 months
    Net weight:58KGS

    APPLICATIONS:
    Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums, Retail outlets, Railway Terminals and Airports etc.
