Galvanize TCP/IP One-way Access Control System Bar code waist
Height Turnstile coin entrance barrier swing gates

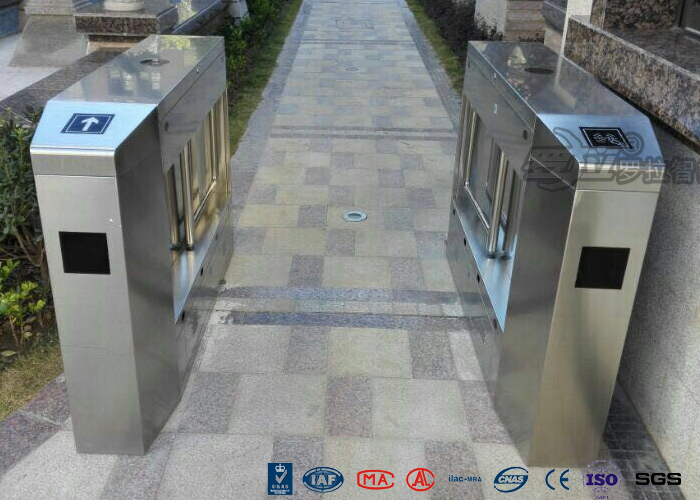

Introduce of sliding turnstile gates :
Integrating mechanism, electronics and micro-processor advanced
technologies.The wasit height turnstile is a improvement of
intelligent tripod turnstiles.Equip various card-reading machines
with hi-performance security protection to realize real-time
warning and clever LED counter display guide passers .it balance
pedestrian intelligent control and management.
sliding turnstile gates designs with tailored stainless steel make
its elegance-looking,durable and anti-oxidation .Considering unique
requests,we built-in standard electrical interface to best-fit
customer easier using magnetic card,barcode,ID&IC cards
integrated .This system provides civilized,well-organized pass
management and meantime its prohibit illegal persons entry&out
SPECIFICATIONS of waist height turnstile
- Long-life performance, high operation dependability and fast
response.
- The whole system runs smoothly, low noise, no mechanical impact.
- Self-test function, when power on, system restoration automatic.
- Single directional or Bi-directional is selectable.
- LED indicator.
- Automatic reset function: when tripod turnstile receives an open
single, but passenger do not pass through the hallway within a
specific time (default 5s), turnstile arm will lock automatically.
- When power off, tripod turnstile arms will drop down automatically,
which is complying with fire safety requirements.
| Model | RNCF-838 |
| Voltage | AC 220V/110V±10% |
| Frequency | 50/60Hz |
| Current | 3A |
| Control circuit: | DC24V |
| Power consumption | 40W |
| Working temperature | -20°C~60°C |
| Working humidity | 0~95%RH |
| Protection grade | IP44 |
| Arm length | 500mm |
| Arm diameter | 38mm |
Functions and Features of the sliding gates :
1. Problem-self-checking function.
2. Many options of working ways: bi-direction card reading; one
direction card reading and another no reading; one direction card
reading and another freely. And single direction photocell
controlled passing and close. Working ways can be set in the
control panel.
3. When power off, arm open automatically and power on again, arm
will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to
close from 1-60s which can be set in the control panel.
5. Auto-reposition function: After card read, passenger not pass
within regulated time period, full-height turnstile will cancel
this passing right. And the regulated time period for passing can
be set by managers.
6. If passenger pass without card read or valid card read, flap
barrier will alarm untill passenger get back from the flap barrier
and then take a valid card to be read for passing.
7. Flap barrier is with 485 interface for long-distrance control
concern.
8. Anti-rush function: if there is no open single, arm will be
holding tightly.
9. Double anti-clipping function: photocell anti-clipping and
mechanical anti-clipping.When passenger is going through the flap
barrier, photocell will detect out this situation and will not
close. After passenger passed, arm will close automatically. During
its reposition, if arm meets any obstacle, arm will get back
automatcially or stop working for a while with very slight force.
Also it will alarm.
10. Flap barrier is with standard electrical interface for the
integration of various readers and writers.
11. Flap barrier can count how many passenger has passed and will
show it in the LED display.
12. Direction display to guide passenger which direction is to go.
13. Card-reading with memory or without memory function.
14. Flap barrier can control the population inside in the control
of software.
15. Stable running with little noise.
