Retractable Optical Turnstile Security Systems Electric For
Airports Access
PRODUCT DESCRIPTIONS:
The retractable flap turnstile controls pedestrian access between
public and secure areas. The turnstile lane uses an array of
optical sensors to determine the number and direction of persons
passing through the lane. The turnstile uses a retractable flap to
block the pedestrian’s path.
The flap turnstile system is provided with a standard electric
interface and can easily integrates the common 3rd party equipment
with read/write facilities, such as access control system, bar-code
scanner, Token /ID/IC card reader, time & attendance system, coin
collector, card collector, biometric systems (fingerprint & face
recognition), consumption system, ESD system and fare collection
system, etc.
SPECIFICATIONS:
Model | Customized | Customized |
Classifications | Single-core mechanism | Dual-core mechanism |
Framework | 304# Stainless Steel (default), 201# or 316# Stainless Steel or
Paint (optional) |
Thickness of ply | 1.7mm |
Finish | brushed surface, polishing surface or anti-fingerprint surface
(optional); |
Size (L*W*H) | Customized |
Material of flap | different color Acrylic flap available or Red Soft flapper optional |
Stretching-out flap length | 230~235mm |
The inductive card reader dimension | equipped with the standard mounting brackets or tailor. | |
Machine center | Germany technological motor |
Power voltage | AC220V±10%, 50Hz±10% |
Driver motor | DC Stepper motor |
Main-board voltage | 12V DC |
In-built Infrared | 7 pairs/lane |
Passing speed | 30 persons/min |
Passage Width | 550mm |
Opening / closing time | 0.6 seconds |
The time required to running state after power on | 3 seconds |
Automatic reset time after the failure | 10 seconds |
Mean time to failure | min. 5 000 000 |
Operation temperature | -10℃ ~ +70℃ |
Relative humidity | less than 95% not condensed |
Working Environment | Indoor/Outdoor (with rain-tent cover) |
Input port | relay dry contact signal; +12V level signal and pulse width
>100ms, DC12V pulse signal |
Communications port | RS232/ RS485 electric standard, communications range≤1200m.
Available to connect with external CAN BUS and Ethernet |
Warranty | 12 months |
APPLICATIONS:
Typical areas of application are: Employee and Visitor Access
Control, Time & Attendance Integration, Loss Prevention, Government
Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super
market, Park, Building Sites, Museums, Retail outlets, Railway
Terminals and Airports etc.
KEY WORDS:
Flap Barrier, half height turnstile, waist height turnstile, falp
turnstile, turnstile, turnstiles, access control turnstile, access
control barrier, sensor gate, sensor barrier, panel barrier, wing
barrier, wing gate, wing turnstile, speed gate, access control
system, perimeter protection barrier.

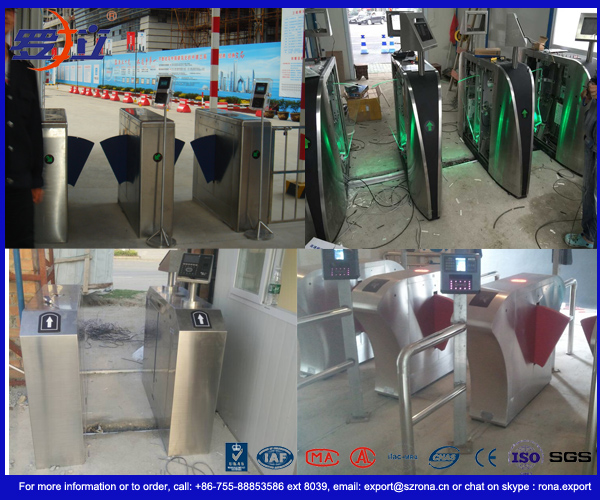

PROJECTS:
