Fingerprint Reader Tripod Turnstile Gate , Full Automatic 304
Stainless Steel Turnstile
PRODUCT CLASSIFICATIONS:
Ful Automatic Type: when power off, it will be dropped the arm to the request of fire
protection. When the power is on again, the arms can also lift
automatically. Once an open signal is given, the arms will rotate
automatically.
STANDARD FEATURES & FUNCTIONS:
TRIPOD TURNSTILE STANDARD FUNCTION SPECIFICATIONS | RNCF858 |
The turnstile system can easily integrates with the 3rd party
equipment, such as Biometric reader, consumption system, ESD system
and access control system etc. | √ |
Operation model: Both directions can be set as controlled mode or
free mode, two or one direction can be controlled by switch- button
or access controller. | √ |
Multi-alarm function: when the arms are pushed by force illegally,
alarm will be triggered automatically and the arms will be set
locked (the duration of the alarm and lock is adjustable by
changing parameter of main control board). | √ |
Reset automatically function: Go signal will be cancelled if
passage through is not completed within pre- set time. The standard
default is 10 seconds (time adjustable by by changing parameter of
main control board). | √ |
Automatic-rotation function: once an open signal is given, the arms
will rotate automatically. | √ |
Auto-drop-arm function: the arm can drop down automatically
(default), or free passing when the power is off. | √ |
Auto-lift-arm function: when the power is on again, the arm can
also lift automatically | √ |
Emergency-escape function: the arm will drop down automatically by
pressing the emergency button which can be remote-controlled
whether the power is on or not. | √ |
Anti backup function: to prevent reverse rotation once the
mechanism has move 60 degree from home | √ |
Optional indication of Mulit LED | √ |
Optional indication of inside LED counter or outside LED counter | √ |
With interface of switch of relay, compatible with all the access
controller | √ |
Equipped with free control software for man-machine interface &
control command SDK. | √ |
Through the management computer to realize remote control and
management. | √ |
1. EASY MAINTENANCE: Common parts are modular and can be easily
changed by simply removing screws. Top cover can be opened for full
access into internal mechanism during servicing. Regular wear and
tear parts can be purchased to keep stock for faster replacement.
2. SEMI AUTO ROTATION:Its unique mechanical drive design allow the
arm to be pushed effortlessly and auto-rotate back without any
expensive electric motor. If arm rotated more than half, it will
auto-rotate to the next idle position. If arm rotated less than
half, it will auto-rotate back to the current idle position.
Adjustable absorber controls rotation force to minimize loud sound
and avoid over rotation.
3. ANTI TAIL-GATING:Smart lock mechanism effectively allow only one
person to pass through at a time. Arm will automatically relock
back if nobody pass through after a preset delay time.
4. USER FRIENDLY:LED at top cover indicates approved entry
direction after flash card. LED at each leg indicate if the lane is
available or closed down for servicing. During power failure, arm
will drop automatically allowing free pass through. Arm is manually
lifted up back to position after power resumed.
5. EASY INTEGRATION:Turnstile is triggered to open via dry contact
relay output for bi-directional or uni-directional entry. RFID
reader can be easily installed underneath side black acrylic. Top
cover and side leg can be opened to install external devices.
TECHNICAL SPECIFICATIONS:
1. Bi-directional turnstile made especially for quick access
control in areas with high traffic but limited space
2. An anti-panic system moves the arm from the horizontal to
vertical position, thereby completely freeing the lane in the case
of an emergency evacuation
3. Non-removable stainless steel arms to prevent vandalism
4. Durable, corrosion-resistant, heavy-duty mechanism for extended
service life:
5.PowerAC220C± 10V, 50HZ
6.Commu. Distance. ≤ 1200m
7.Passing Speed40 Persons/min(IC Card)
8.MotorDC Brushless Motor, 0.5NM/24V(Fully Automatic)
9.Input Connection+12V Level Signal or Pulse Wide>100ms DC12V pulse,
10.Communication ConnectionRS485 Communication Interface
11.MaterialSUS304 or Carbon Steel Powder Coating
12.Protection GradeIP54
13.ColourSSB(US32D)- Stainless Steel Brushed / Powder Coating/
14.ApplicationsSubway Station, Hoverport, Tourism, Exhibition,
Swimming Hall, Residence Area

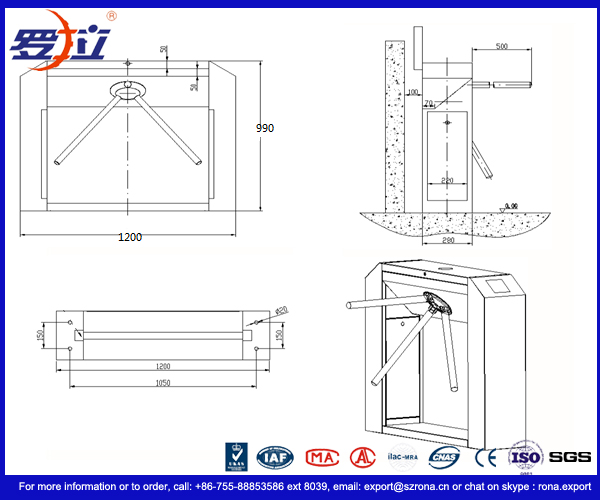

DIMESNION SPECIFICATIONS:
