Stainless Steel Flap Barrier Gate Half Height Turnstiles Acrylic Blue Flap Barrier Gate Bi-Directional Turnstile

Shenzhen Rona Intelligent Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Stainless Steel Flap Barrier Gate Half Height Turnstiles Acrylic Blue Flap Barrier Gate Bi-Directional Turnstile from wholesalers

    Buy cheap Stainless Steel Flap Barrier Gate Half Height Turnstiles Acrylic Blue Flap Barrier Gate Bi-Directional Turnstile from wholesalers
    • Buy cheap Stainless Steel Flap Barrier Gate Half Height Turnstiles Acrylic Blue Flap Barrier Gate Bi-Directional Turnstile from wholesalers
    • Buy cheap Stainless Steel Flap Barrier Gate Half Height Turnstiles Acrylic Blue Flap Barrier Gate Bi-Directional Turnstile from wholesalers
    • Buy cheap Stainless Steel Flap Barrier Gate Half Height Turnstiles Acrylic Blue Flap Barrier Gate Bi-Directional Turnstile from wholesalers

    Stainless Steel Flap Barrier Gate Half Height Turnstiles Acrylic Blue Flap Barrier Gate Bi-Directional Turnstile

    Ask Lasest Price
    Brand Name : RONA
    Model Number : RNCF2088 / RNCF2088S
    Certification : CE / ISO9001
    Price : negotiation
    Payment Terms : T/T,
    Supply Ability : 2000 units Per Month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    Stainless Steel Flap Barrier Gate Half Height Turnstiles Acrylic Blue Flap Barrier Gate Bi-Directional Turnstile

    Stainless Steel Flap Barrier Gate Half Height Turnstiles Acrylic Blue Flap Barrier Gate Bi-Directional Turnstile

    KEY WORDS:

    Flap Barrier, half height turnstile, waist height turnstile, falp turnstile, turnstile, turnstiles, access control turnstile, access control barrier, sensor gate, sensor barrier, panel barrier, wing barrier, wing gate, wing turnstile, speed gate, access control system, perimeter protection barrier.


    PRODUCT CLASSIFICATIONS:

    -> Single-core mechanism: RNCF2088

    The flap barrier only equipped with single-core in the cabinet, usually be used in single lane or multi-lane applications.


    ->Dual-core mechanism: RNCF2088S

    The flap barrier equipped with independent dual-core in the cabinet, usually be used in multi-lane applications.

    PRODUCT DESCRIPTIONS:

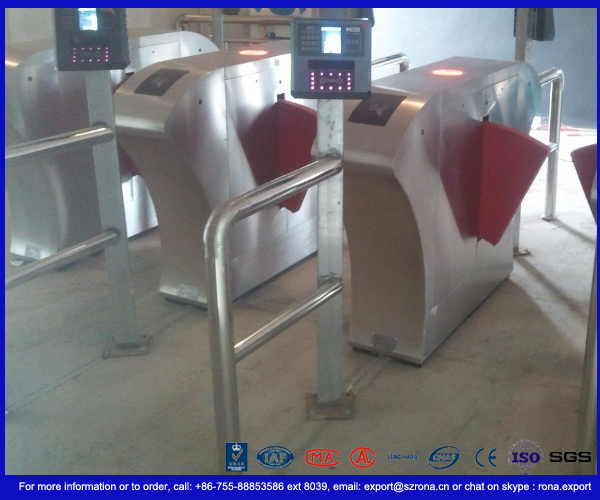

    The retractable flap turnstile controls pedestrian access between public and secure areas. The turnstile lane uses an array of optical sensors to determine the number and direction of persons passing through the lane. The turnstile uses a retractable flap to block the pedestrian’s path.


    SPECIFICATIONS:

    Model

    RNCF2088

    RNCF2088S

    Classifications

    Single-core mechanism

    Dual-core mechanism

    Framework

    304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional)

    Thickness of ply

    1.7mm

    Finish

    brushed surface, polishing surface or anti-fingerprint surface (optional);

    Size (L*W*H)

    1500mm*300mm*990mm

    Material of flap

    different color Acrylic flap available or Red Soft flapper optional

    Stretching-out flap length

    230~235mm

    The inductive card reader dimension

    equipped with the standard mounting brackets or tailor.



    Machine center

    Germany technological motor

    Power voltage

    AC220V±10%, 50Hz±10%

    Driver motor

    DC Brush motor

    Main-board voltage

    12V DC

    In-built Infrared

    5 pairs/lane

    Passing speed

    30 persons/min

    Passage Width

    550mm

    Opening / closing time

    0.6 seconds

    The time required to running state after power on

    3 seconds

    Automatic reset time after the failure

    10 seconds

    Mean time to failure

    min. 5 000 000

    Operation temperature

    -10℃ ~ +70℃

    Relative humidity

    less than 95% not condensed

    Working Environment

    Indoor/Outdoor (with rain-tent cover)

    Input port

    relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal

    Communications port

    RS232/ RS485 electric standard, communications range≤1200m. Available to connect with external CAN BUS and Ethernet

    Warranty

    12 months


    PROJECTS:


    WORKSHOP:


    CUSTOMERS:
    304 Stainless Steel Tripod Turnstile Gate with Biometric Recognition System
