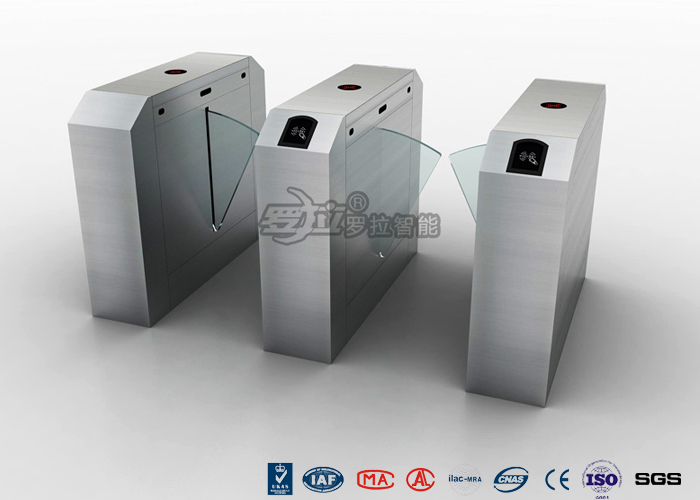

    Dual Channel Automation Flap Barrier Gate Fast Lane Gate Access Control Systems

    Ask Lasest Price
    Brand Name : RONA
    Model Number : RNCF6088 / RNCF6088S
    Certification : CE / ISO9001
    Price : negotiation
    Payment Terms : , T/T, L/C
    Supply Ability : 2000 units Per Month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    Dual Channel Automation Flap Barrier Gate Fast Lane Gate Access Control Systems

    Dual Channel Automation Flap Barrier Gate Fast Lane Gate Access Control Systems



    Flap barrier gates:
    All flap barrier are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation, traffic lights, command console, alarm system against unauthorised entries, interfaced with a PC through a RS232(RS485,TCP-IP) line. The unique swing arm feature provides a fail-safe safety solution in case of an emergency or power failure, providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. The turnstile creates a secure environment in, for example, a reception area. Our turnstiles are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.


    IN GENERAL Installation

    • Use IC cards,ID cards,Bar code or magnetic cards as automatic identification system and achieve access,attendance fees or function
    • A direction indicator ,showed that pedestrian access to the current status of,and guide pedestians correct and smooth passage
    • Didplay has been in use for statistics and numbers
    • With voice and strobe light alerts
    • A combination of infrared sensors and police anti-illegal entry into pedestrian access,the protection of pedestians smooth and the prevention of the channel following


    Feature & Advantages
    (1) Directional VFD Optical Signals----Green Arrow or Red Cross signage
    (2) Only one person can pass with one card
    (3) Collect the break-in information
    (4) Installed in indoor or outdoor
    (5) Well lightning and grounding
    (6) Multi-working mode----Forbidden, Controlled or Free Passing optional
    (7) Easily integrated with any type of readers---such as Magnetic card, Barcode card, RFID Card and so on
    (8) Card-swiping memory function
    (9) Statistics collection automatically
    (10) Manual release when meet the outside push
    (11) NO/NC mode. In an emergency, the passage will be freely pass automatically
    (12) Bi-directional passing or single way passing
    (13) Self-inspection and alarm
    (14) Can program the running status online by setting the built-in keys
    (15) LED Counter, Direction indicator
    (16) Infrared detector to sense the passing status.


    Technical parameters

    ModelRNCF 6088
    Flap length245mm
    Lane width550mm
    Cabinet materialCold rolled steel & aluminum alloy
    Material of Flap DoorAcrylic plate
    Housing of thickness2.0mm
    Normal Life Span3 millions times
    Communication InterfaceStandard RS485
    Transit speed30-40 persons/min
    Time for opening or closing0.5s
    Starting time after power on3s
    Input interfaceDry contact signal or +12Vor pulse signal with width more than100ms DC12V
    Transit speed25~32 persons/min
    Working temperature-10°C~50°C
    Working environmentIndoor / Outdoor (Shelter)
    Relative humidity≤95%, no condensation
