    Double Lane Full Height Turnstile 304 Stainless Steel Turnstiles CE Approved

    Ask Lasest Price
    Brand Name : RONA
    Model Number : RNCF21238FS-2U
    Certification : CE / ISO9001
    Price : negotiation
    Payment Terms : T/T,
    Supply Ability : 2000 units Per Month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    Double Lane Full Height Turnstile 304 Stainless Steel Turnstiles CE Approved

    https://www.tiktok.com/t/ZTRRV5GgJ/?k=1Double Lane Full Height Turnstile 304 Stainless Steel Turnstiles CE Approved


    Model: RNCF21238FS-2U Dual Passage Full Height Turnstile


    TECHNICAL SPECIFICATIONS:

    Framework:

    304# Stainless Steel (default), 201# or 316# Stainless Steel (optional)

    Thickness of ply:

    1.7mm

    Finish:

    Brushed surface / Polished surface / Anti-Fingerprints surface

    Shell’ size:

    L2600mm*W1350mm*H2200mm (Standard)

    Arm’s length:

    600mm

    Arm diameter:

    38mm

    The inductive card reader dimension:

    equipped with the standard mounting brackets, or tailor.

    Card Reader mounting:

    Card readers may be mounted on the surface of the barrier, or the card readers may be mounted flush mounted. There is an output to interlock the card.

    Operation voltage:

    AC220V±10% 50Hz±10%

    Time of opening / closing:

    0.2s

    Time to work after power on:

    3s

    Reset time after breaking down:

    10s

    Transit speed:

    30 persons/minute

    MTBF:

    >5 million

    Communications Interface:

    RS485, distance ≤1200m (standard) ; Available to connect with external CAN BUS and Ethernet (Optional)

    Input interface:

    relay dry contact signal; +12V level signal or pulse width>100ms 12V pulse, drive current>10mA

    Relative humidity:

    ≤90% Non-condensing

    Working Environment:

    -10℃ ~ 70℃, Indoor / Outdoor

    Certificates:

    CE certified

    STANDARD FEATURES & FUNCTIONS:

    • > The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader,consumption system, ESD system and access control system etc, Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID/IC card etc.

    • > Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller.

    • > Available with 4-arm, 90 degree spacing (default) or 3-arm, 120 degree spacing (optional).

    • > The running status of device can be set up through pressing the built-in small keyboard of the main control board.

    • > When power off, the center rotor will be set free model (default) or be locked model (optional).

    • > Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.

    • > Reset automatically function: Go signal will be cancelled if passage through is not completed within pre-set time. The standard default is 10 seconds (time adjustable by changing parameter of main control board).

    • > Anti backup function: to prevent reverse rotation once the mechanism has move 60 degree from home.

    • > Remote control and management function: Through the management computer to realize remote control and management.


    OPTIONAL & CUSTOMIZED FUNCTIONS:

    • > Alternative Materials, Finishes and Custom Design

    • > Usage LED Counter function

    • > Audio and visual alarm in the event of an invalid entry or exit and tailgating

    • > Remote Controlled Button

    • > Extra add sensors transmitter and receiver type

    • > Infrared sensors reset function

    • > Access Control System Integration

    • > Camera System Integration

    • > Thermostat System Integration

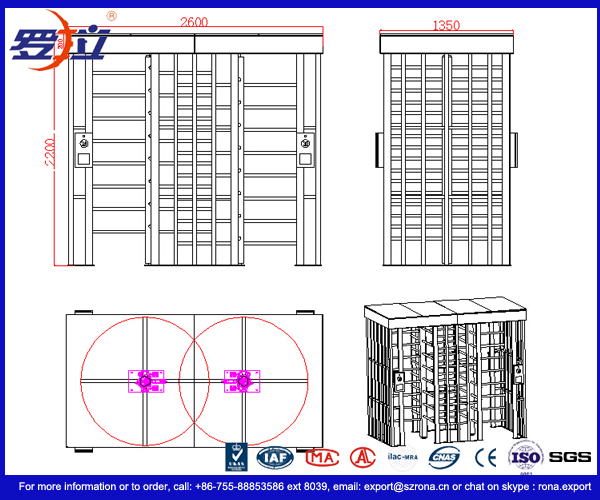

    DIMESNION SPECIFICATIONS:

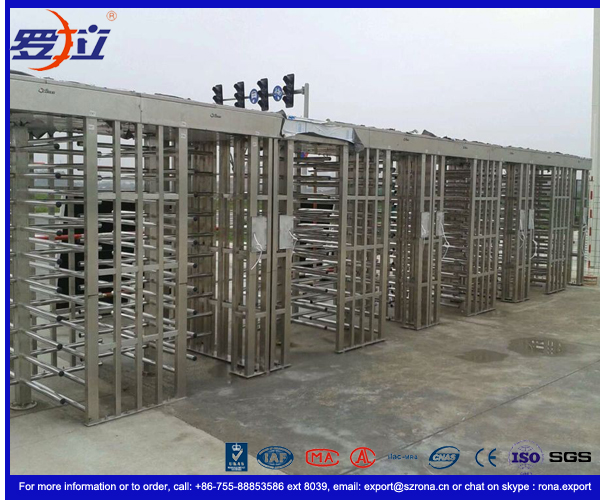

    PROJECTS:
