RFID Flexible Pedestrian Turnstile Gate , High Security Turnstile Heavy Duty Steel Frame

Shenzhen Rona Intelligent Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap RFID Flexible Pedestrian Turnstile Gate , High Security Turnstile Heavy Duty Steel Frame from wholesalers

    Buy cheap RFID Flexible Pedestrian Turnstile Gate , High Security Turnstile Heavy Duty Steel Frame from wholesalers
    • Buy cheap RFID Flexible Pedestrian Turnstile Gate , High Security Turnstile Heavy Duty Steel Frame from wholesalers

    RFID Flexible Pedestrian Turnstile Gate , High Security Turnstile Heavy Duty Steel Frame

    Ask Lasest Price
    Brand Name : RONA
    Model Number : RNCF21238Y
    Certification : CE / ISO9001
    Price : negotiation
    Payment Terms : T/T,
    Supply Ability : 2000 units Per Month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

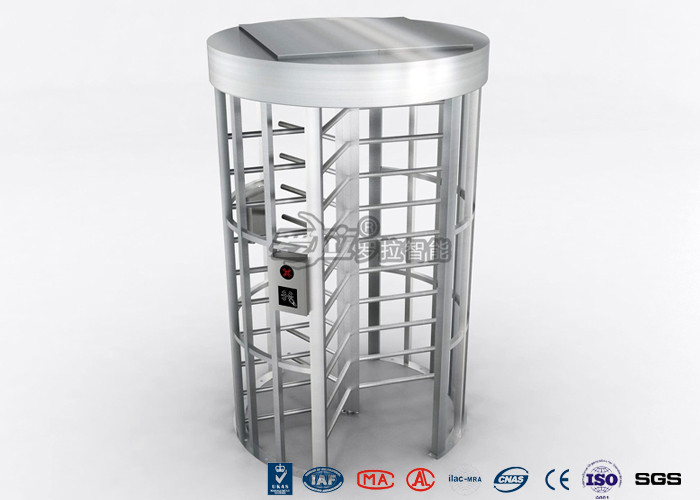

    RFID Flexible Pedestrian Turnstile Gate , High Security Turnstile Heavy Duty Steel Frame

    High Quality RFID Flexible Stainless Steel Full Height Turnstile


    Product Desription:


    With the strength of a heavy-duty steel frame, full height turnstile gate provides floor-to-ceiling security. A Full Height stainless steel turnstile can be used for one-way or bi-directional passage and are usually integrated as part of a security access control system. Depending on traffic flow and entry/exit patterns, when more than one lane is required. The full height turnstile installation manual is also easy.



    Standard Features&Functions:

    1.

    The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader,consumption system, ESD system and access control system etc, Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID/IC card etc.

    2.Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller
    3.

    Available with 4-arm, 90 degree spacing (default) or 3-arm, 120 degree spacing (optional).

    4.

    Anti backup function: to prevent reverse rotation once the mechanism has move 60 degree from home.

    5.The running status of device can be set up through pressing the built-in small keyboard of the main control board.
    6.

    When power off, the center rotor will be set free model (default) or be locked model (optional).

    7.

    Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.

    8.

    Reset automatically function: Go signal will be cancelled if passage through is not completed within pre-set time. The standard default is 10 seconds (time adjustable by changing parameter of main control board).

    9.

    Remote control and management function: Through the management computer to realize remote control and management.


    TECHNICAL SPECIFICATIONS:

    Framework:304# Stainless Steel (default), 201# or 316# Stainless Steel (optional)
    Thickness of ply:1.7mm
    Finish:Brushed surface / Polished surface / Anti-Fingerprints surface
    Shell’ size:L1500mm*W1350mm*H2200mm (Standard)
    Arm’s length:600mm
    Arm diameter:38mm
    The inductive card reader dimension:equipped with the standard mounting brackets, or tailor.
    Card Reader mounting:Card readers may be mounted on the surface of the barrier, or the card readers may be mounted flush mounted. There is an output to interlock the card.
    Operation voltage:AC220V±10% 50Hz±10%
    Time of opening / closing:0.2s
    Time to work after power on:3s
    Reset time after breaking down:10s
    Transit speed:30 persons/minute
    MTBF:>5 million
    Communications Interface:RS485, distance ≤1200m (standard) ; Available to connect with external CAN BUS and Ethernet (Optional)
    Input interface:relay dry contact signal; +12V level signal or pulse width>100ms 12V pulse, drive current>10mA
    Relative humidity:≤90% Non-condensing
    Working Environment:-10℃ ~ 70℃, Indoor / Outdoor
    Certificates:CE certified



    Operation Models:

    The turnstile provides bi-directional access control. Each direction may be in one of three states:
    Free passage: all person are authorized to pass under all conditions

    Controlled access: each person must use a card reader before being authorized to pass.

    Lane closed: no persons are authorized to pass, and security cards are ignored.
