    Stainless Steel Single Passage Full High Turnstile Access Control Gate Anti - Tailgating

    Ask Lasest Price
    Brand Name : RONA
    Model Number : RNCF21238Y-4
    Certification : CE / ISO9001
    Price : negotiation
    Payment Terms : T/T,
    Supply Ability : 2000 units Per Month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

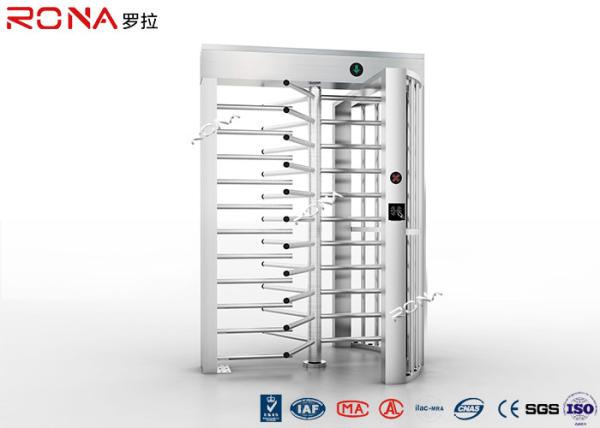

    Stainless Steel Single Passage Full High Turnstile Access Control Gate Anti - Tailgating

    Stainless steel single passage full height turnstile mechanism access control turnstile


    Model: RNCF21238Y-4 Single Lane Full Height Turnstile

    Product Descriptions:

    • With the mechanical anti-tailgating design, full height turnstile gate can effectively achieve “one person passing at a time”.
    • The full height turnstile system is provided with a standard electric interface and is easily integrated into the 3rd party equipment with read/write facilities, such as Biometric reader, consumption system, ESD system and access control system etc.
    • The RNCF21238Y-4 consists of rotor assembly which consists of three rotors, each containing 10 arms spaced equally 510mm apart. Each arm is attached to the rotor posts with a solid spigot.

    • After receiving a valid open signal, the semi-automatic turnstile arms need manually pushing forward to rotate. The turnstile works stably, safely and reliably.

    • Turnstile opens when power failures: With the industry's leading mechanical structure created by RONA, full height turnstile system will unlock the arms to be pushed freely, so as to evacuate people.

    Technical Specifications:
    Thickness of ply:1.7 (mm)
    Finish:Brushed surface / Polished surface / Anti-Fingerprints surface
    Arm size:600L*38D (mm)
    The inductive card reader dimension:equipped with the standard mounting brackets, or tailor.
    Operation voltage:AC220V±10% 50Hz±10%
    Communications Interface:RS485, distance ≤1200m (standard) ; Available to connect with external CAN BUS and Ethernet (Optional)
    Input interface:relay dry contact signal; +12V level signal or pulse width>100ms 12V pulse, drive current>10mA
    Relative humidity:≤90% Non-condensing
    Working Environment:-10℃ ~ 70℃, Indoor / Outdoor
    Card Reader mounting:Card readers may be mounted on the surface of the barrier, or the card readers may be mounted flush mounted. There is an output to interlock the card.


    Services Provided:

    • All items have 12 month quality guarantee.
    • OEM/ODM available: Custom design shape, color and logo.
    • Special discount of our distributors or agents in their area.
    • Packing in standard export carton, suggest you pack it by wooden case to protect the products.
    • Fast delivery: sample order in stock, 5~7 days for bulk production.
    • Payment: we can accept T/T, .
